Insulated Sandwich Panels & Accessories

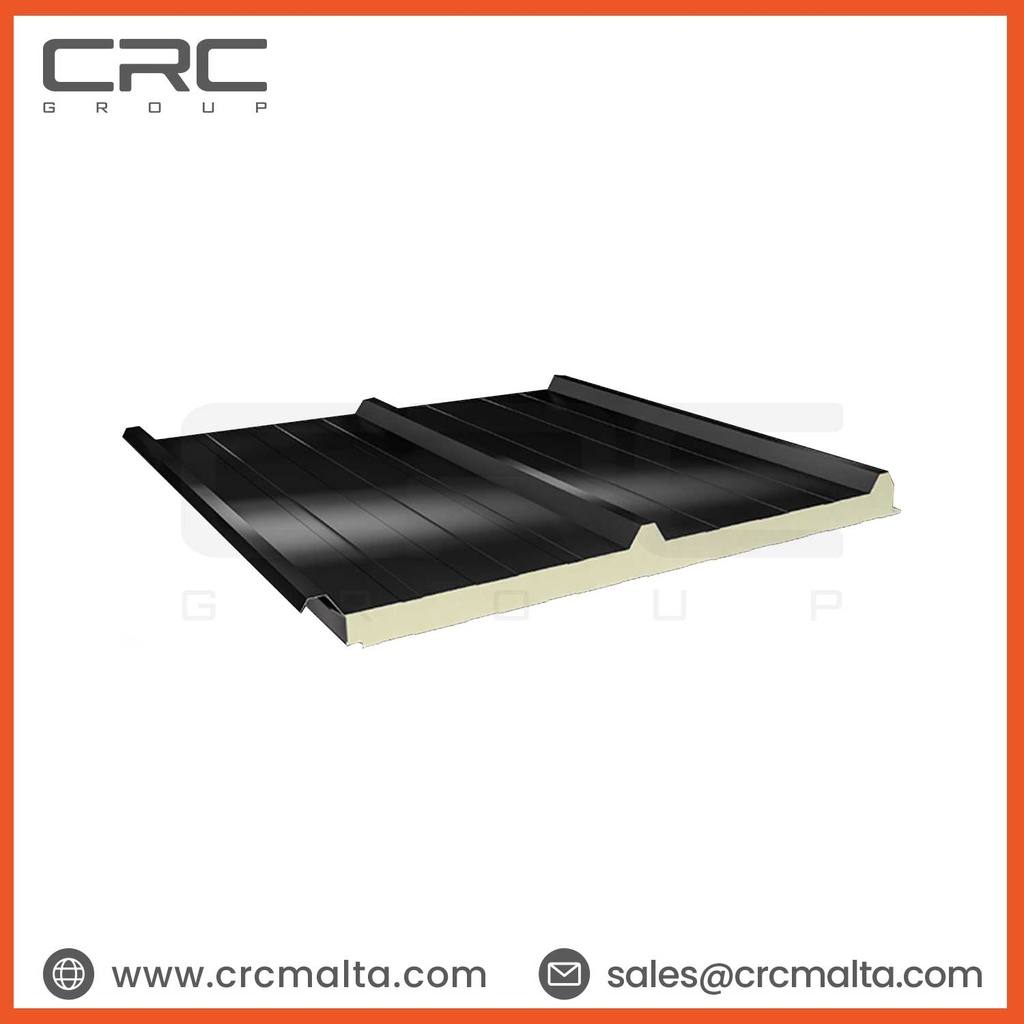

3 ribs profiled the outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m and 15m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
EPS insulation alternatives besides PUR and PIR insulation.

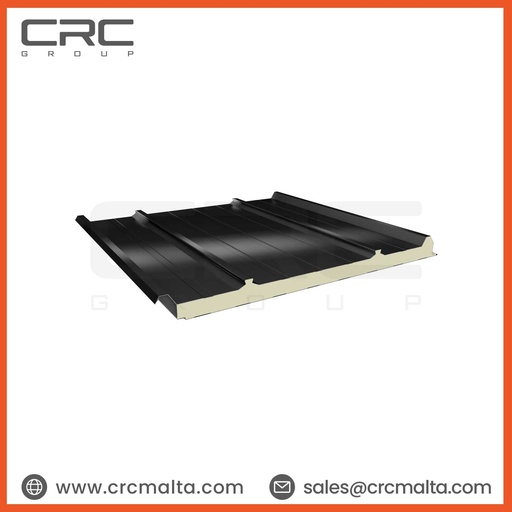

4 ribs profiled outer sheet is compatible with the solar panels.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options.
Application on roofs with a slope higher than 5%.
The clamp allows the solar panel to be mounted without drilling.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 15m.
Core thickness options 40-50-60 mm.
According to TS EN 14509, U values range between 0,49 – 0,34 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

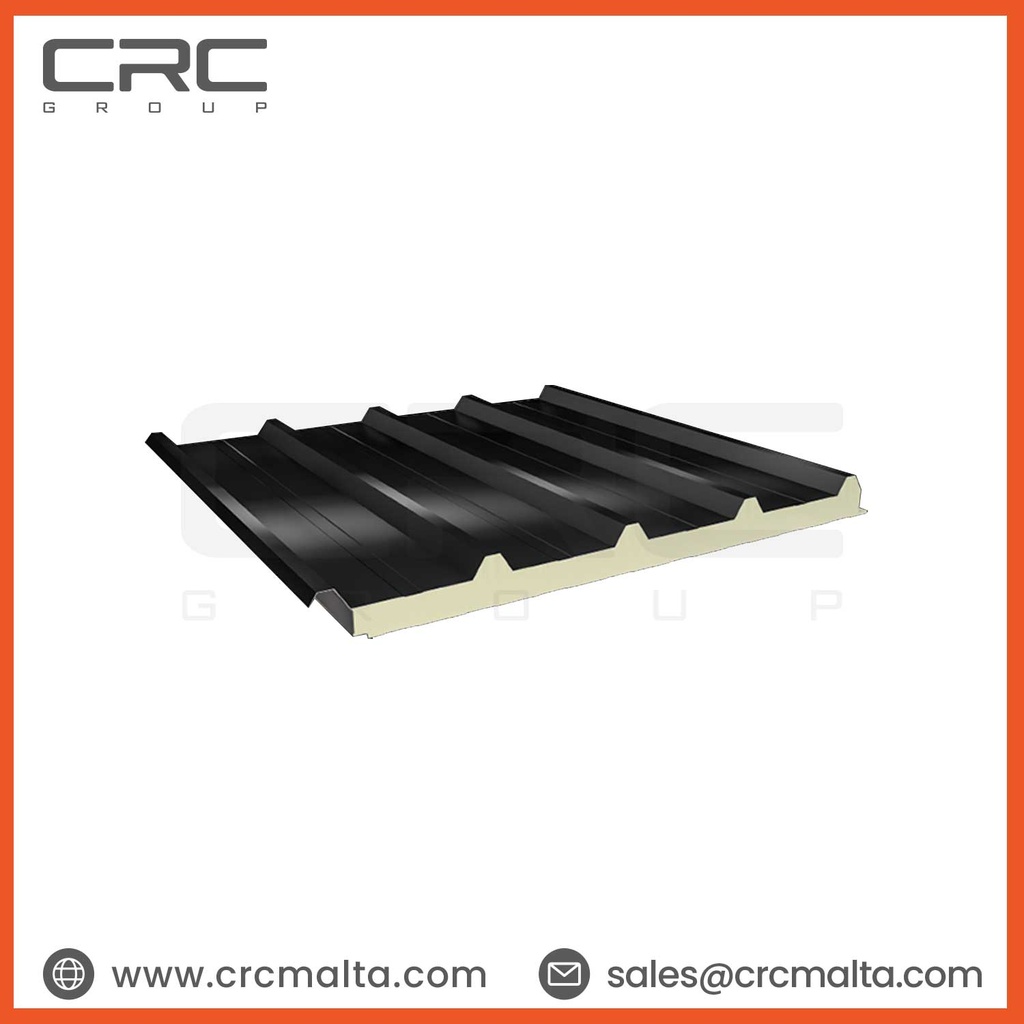

5 ribs profiled outer sheet.
I prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%
Fire performance according to TS EN 13501-1B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 15m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.

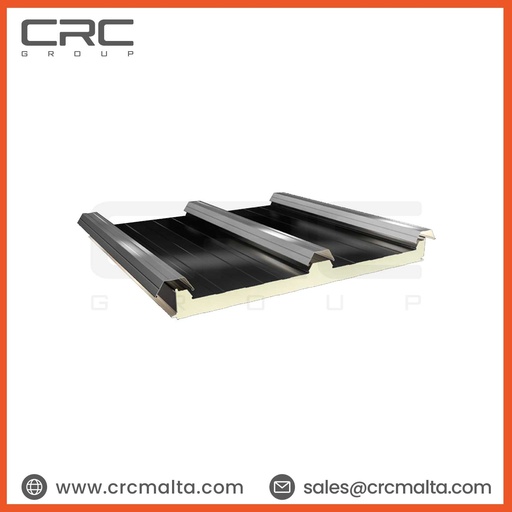

3 ribs profiled the outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Optional middle cap profile.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m - 15 m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,52 – 0,14 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.
ISO, TSE, CE quality certificates.

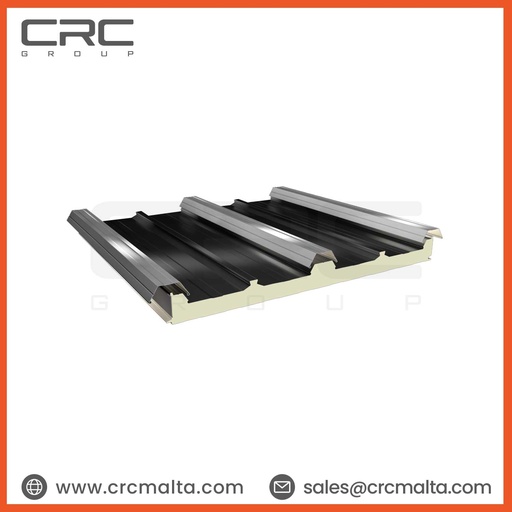

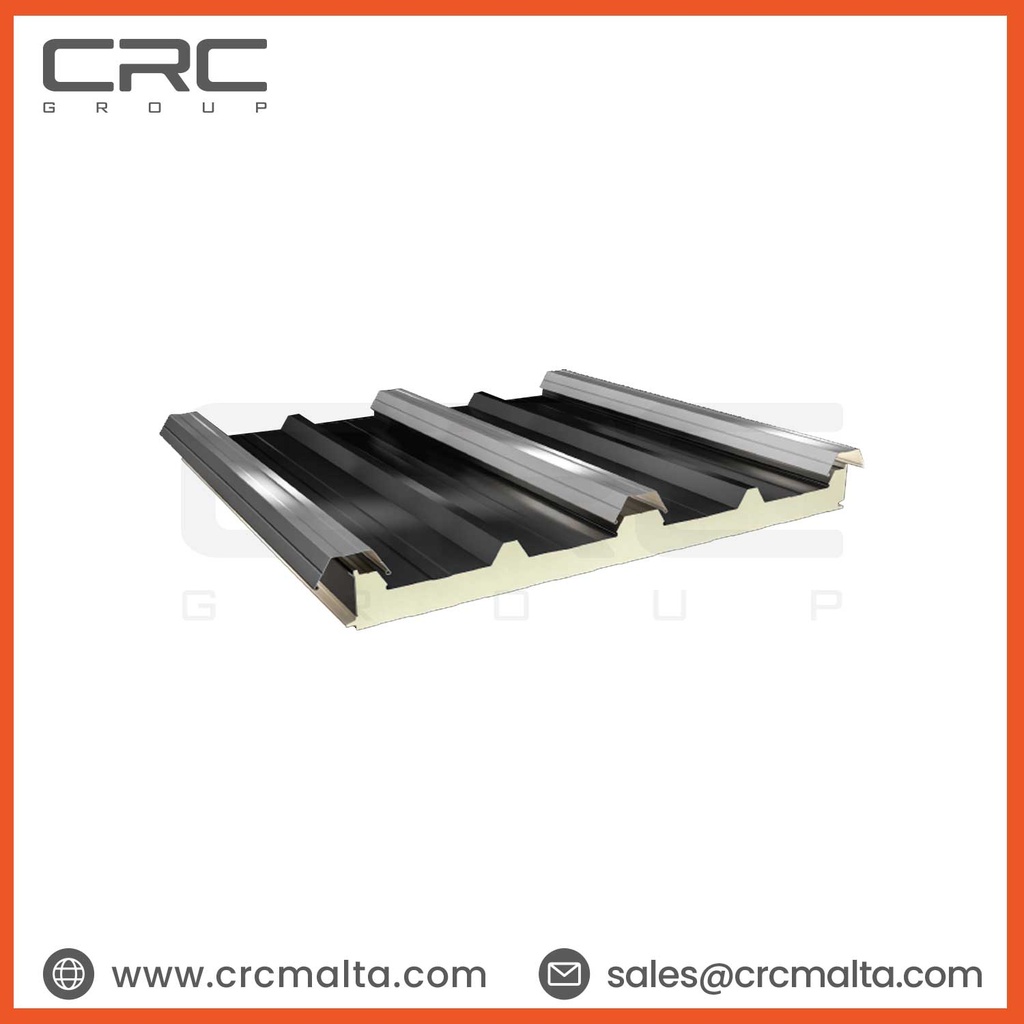

5 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Optional middle cap profile.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m - 15 m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,52 – 0,14 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.
ISO, TSE, CE quality certificates.

5 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Optional middle cap profile.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m and 15m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,52 – 0,14 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.
ISO, TSE, CE quality certificates.

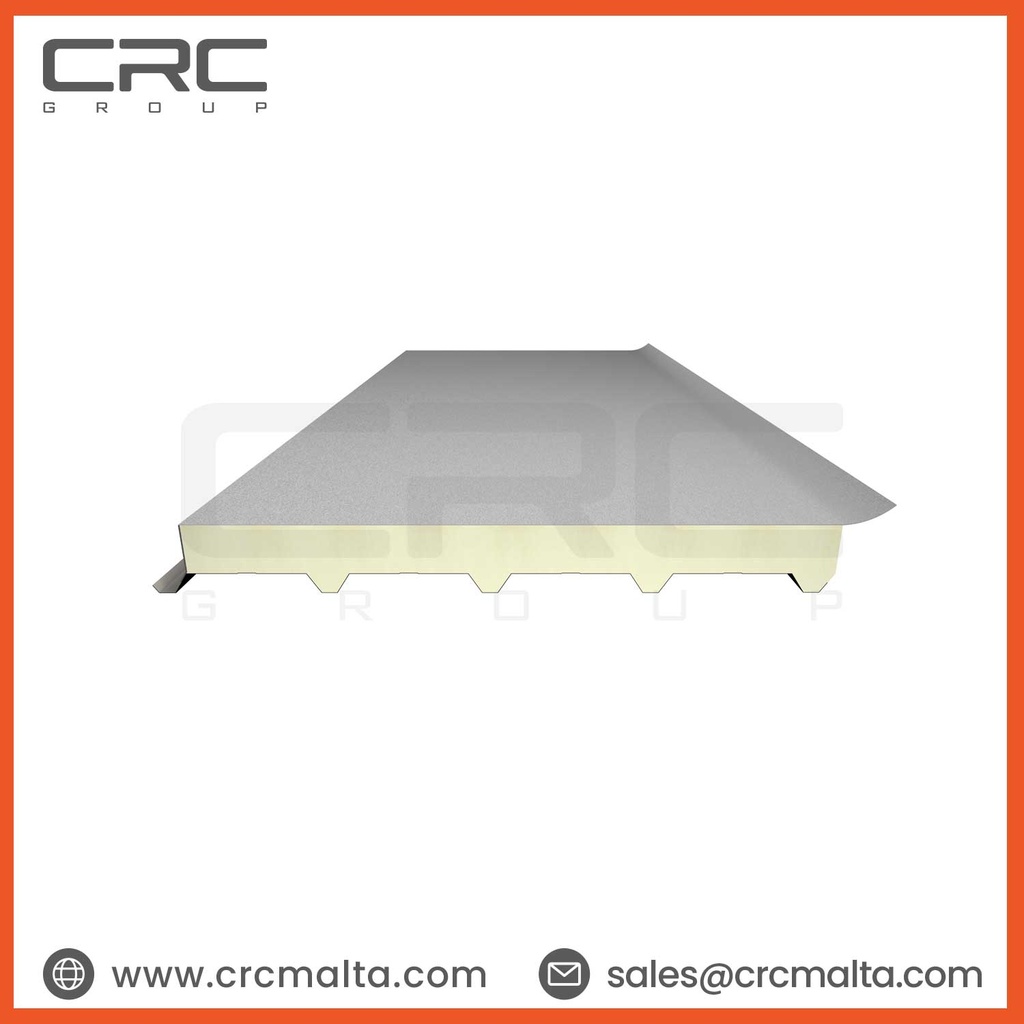

5 ribs profiled the inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is a PVC Membrane
Production in various color options.
Application of flat roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
PVC Membrane thickness options 1,20-1,50-1,80-2,00 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
Mineral Wool insulation alternatives. besides PUR and PIR insulation

5 ribs profiled the inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is a PVC Membrane
Production in various color options.
Application of flat roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
PVC Membrane thickness options 1,20-1,50-1,80-2,00 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
Mineral Wool insulation alternatives. besides PUR and PIR insulation

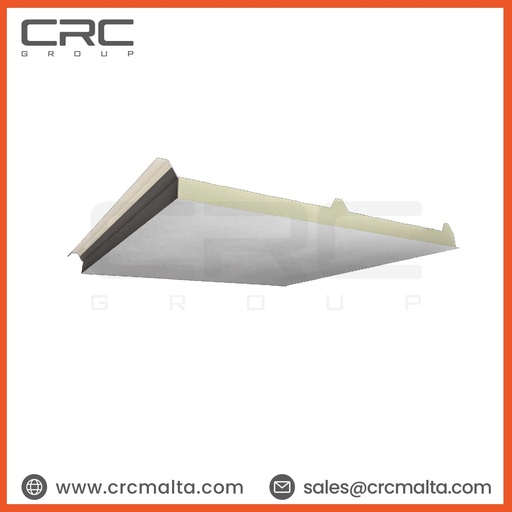

3 ribs profiled outer sheet.
Inner sheet is GRP, outer sheet is prepainted galvanized steel or aluminum
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to use at modern animal and poultry husbandry facilities, and environments requiring chemical resistance.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
GRP thickness options between 0,70 mm – 1,00 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

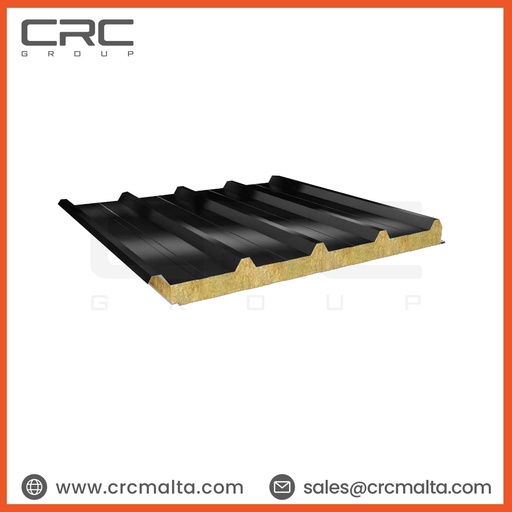

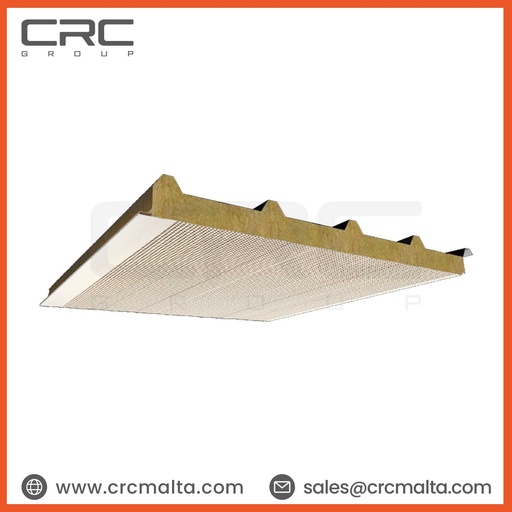

5 ribs profiled outer sheet.
I prepainted galvanized steel inner and outer sheet material.
Production in various color options.
Usage in buildings that require fire safety.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,63 – 0,23 W/m2K depending on the panel thickness.
PUR, PIR, and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, and CE quality certificates.

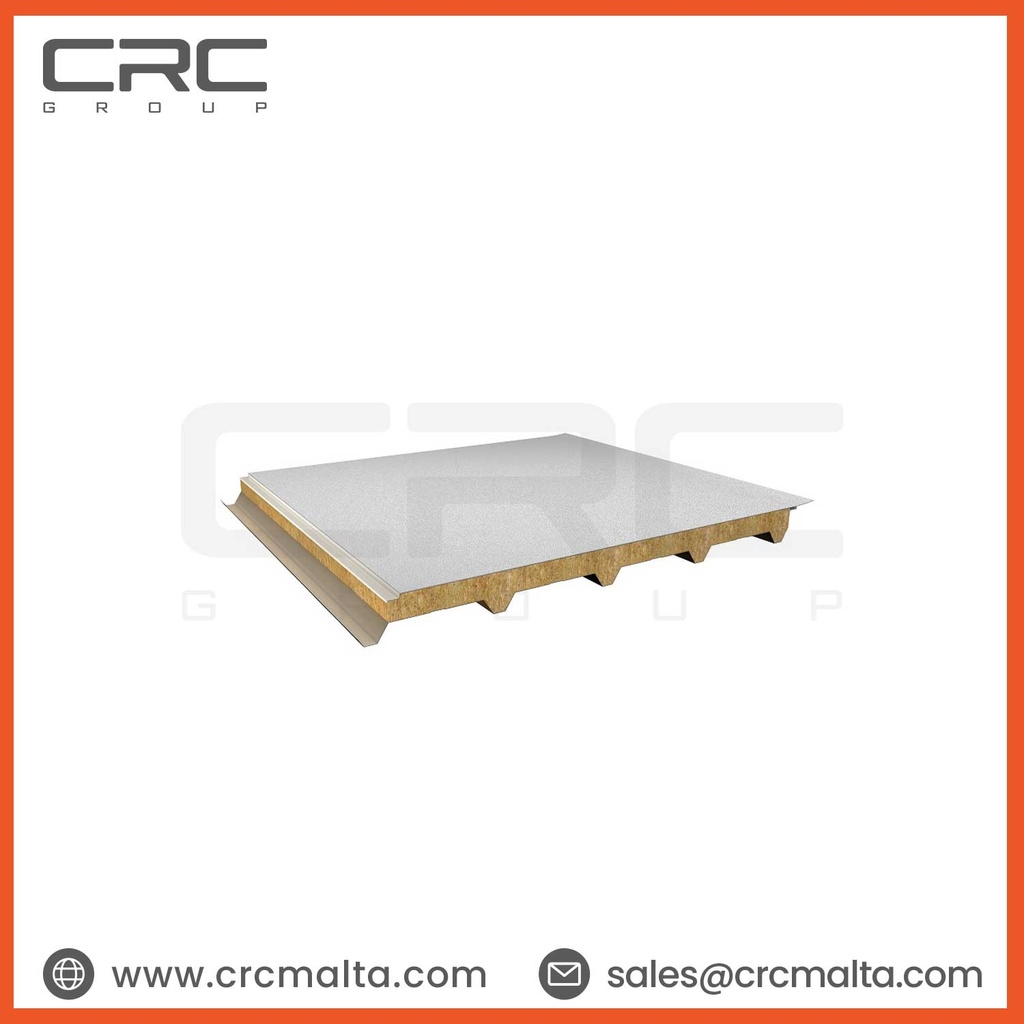

5 ribs profiled the inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is PVC or TPO Membrane.
Production in various color options.
Usage in buildings that require fire safety.
Application of terrace roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s1; d0 for Rock Wool insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 50-60-80-100-120-150 mm.
PVC or TPO membrane thickness options 1,20-1,50-1,80-2,00 mm.
According to TS EN 14509, U values range between 0,62 – 0,23 W/m2K depending on the panel thickness.
PUR and PIR insulation alternatives besides Rock Wool insulation.

5 ribs profiled the inner sheet.
The inner sheet is prepainted galvanized steel, and the outer sheet is galvanized sheet coated with PVC membrane.
Production in various color options.
Usage in buildings that require fire safety.
Application of flat roofs and roofs with a slope lower than 5%.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 50-60-80-100-120-150 mm.
PVC membrane thickness options 1,20-1,50-1,80-2,00 mm.
According to TS EN 14509, U values range between 0,62 – 0,23 W/m2K depending on the panel thickness.
PUR and PIR insulation alternatives besides rock wool insulation.

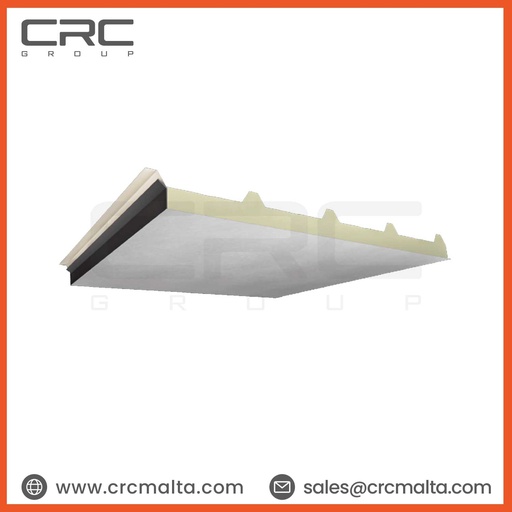

5 ribs profiled outer sheet
Inner sheet is GRP, outer sheet is prepainted galvanized steel or aluminum
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to use at modern animal and poultry husbandry facilities, and environments requiring chemical resistance.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 12m
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
GRP thickness options between 0,70 mm – 1,00 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

Lined, micro-lined, and deeply lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,57 – 0,11 W/m2K for lined and micro-lined lined, and 0,57 – 0,37 W/m2K for deep lined depending on the panel thickness.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation
ISO, TSE, and CE quality certificates.

Lined, micro-lined and deep-lined surface-type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated wall panels,B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2 m & 12 m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between0,57 – 0,11 W/m2K for lined and micro lined, 0, 57 – 0,37 W/m2K for deep lined depending on the panel thickness.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.

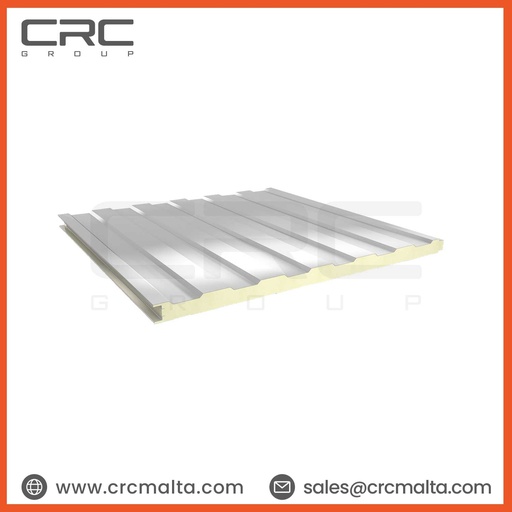

Lined, micro-lined, and deep-lined surface-type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,57 – 0,11 W/m2K for lined and micro-lined lined, and 0,57 – 0,37 W/m2K for deep lined depending on the panel thickness.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.

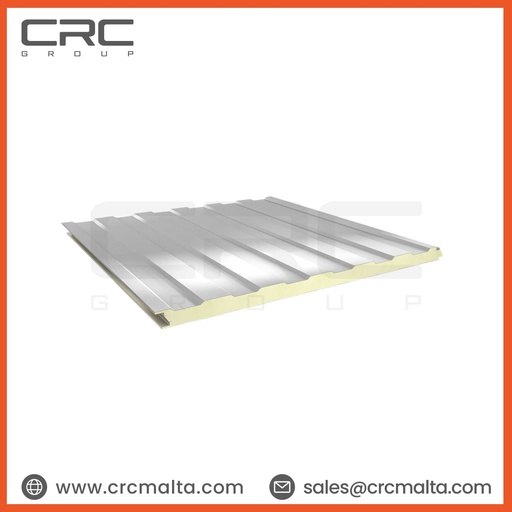

Lined, micro lined, deep lined, and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,67 – 0,11 W/m2K for lined and micro lined 0,67 – 0,42 W/m2K for deep lined depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR* insulation
ISO, TSE, CE quality certificates and FM Approval Certificates.

Lined, micro lined, deep lined and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,67 – 0,11 W/m2K for lined and micro lined 0,67 – 0,42 W/m2K for deep lined depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR insulation.
ISO, TSE, CE quality certificates and FM Approval Certificates.

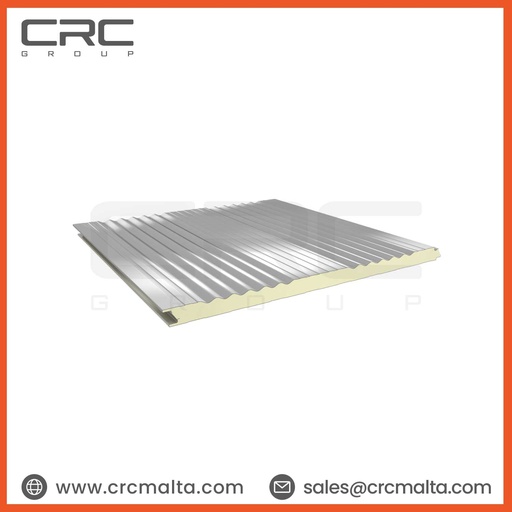

Sinus and lined surface type.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Secret fixing joint detail.
Both vertical and horizontal cladding.
Production flexibility at any ordered length between 2m & 12m.

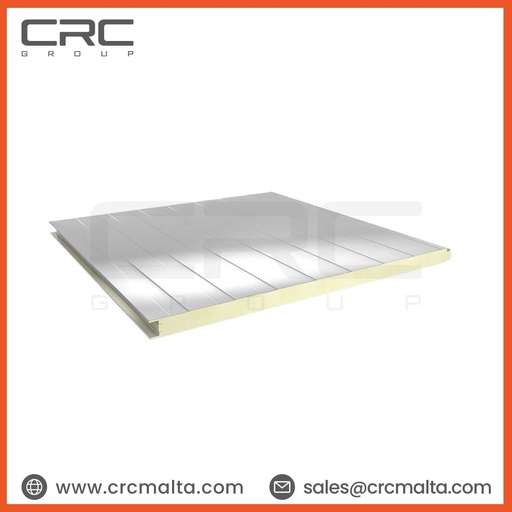

Core thickness options, 40-50-60-70-75-80-100-120-150-180-200 mm.
Mineral Wool insulation alternative besides PUR and PIR insulation.

Lined and micro-lined surface-type options
Coated galvanize sheet inner and outer surface material.
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm
According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation
ISO, TSE, and CE quality certificates.

Lined and micro-lined surface type options.
Coated galvanize sheet inner and outer surface material.
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, and CE quality certificates.

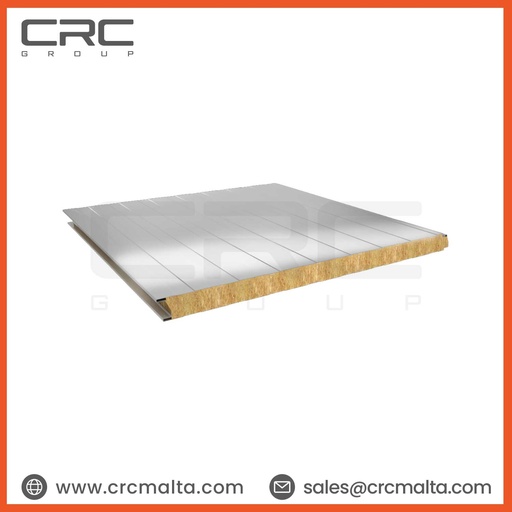

Lined, micro-lined and sinus & lined surface type options.
Coated galvanize sheet inner and outer surface material.
Production in various color options.
Secret fixing joint detail.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, CE quality certificates.

Lined, micro-lined and sinus & lined surface type options.
Coated galvanize sheet inner and outer surface material.
Production in various color options.
Secret fixing joint detail.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, CE quality certificates.

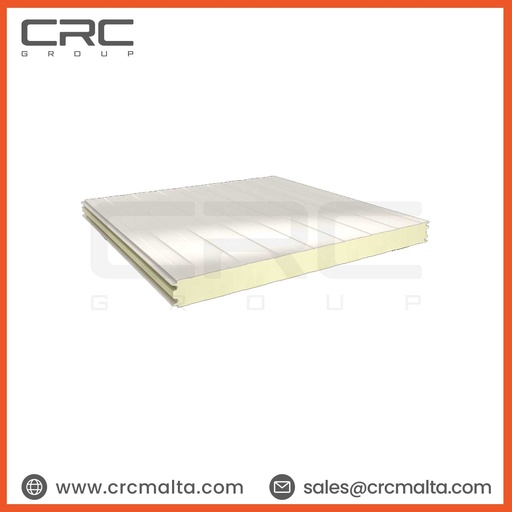

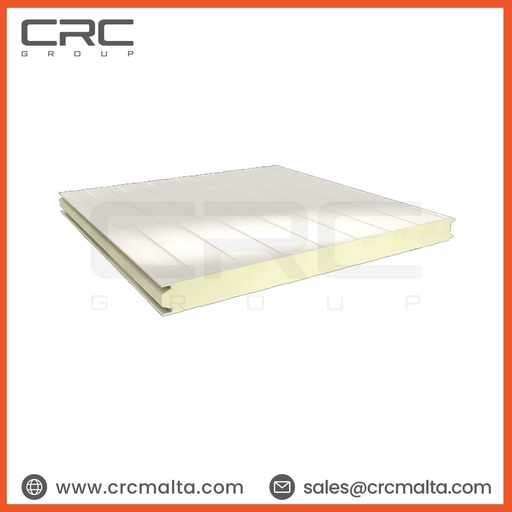

Lined and flat surface-type options.
Prepainted galvanized steel, stainless steel or PVC film laminated inner and outer sheet alternatives.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated cold storage panels, B-s1; d0 for PIR insulated cold storage panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,27 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR insulation alternatives.
ISO, TSE, and CE quality certificates.

Lined and flat surface type options.
Prepainted galvanized steel, stainless steel or PVC film laminated inner and outer sheet alternatives.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated cold storage panels, B-s1; d0 for PIR insulated cold storage panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,27 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR* insulation alternatives.
ISO, TSE, CE quality certificates and FM Approval Certificates.

5 ribs profiled outer sheet
The outer sheet is prepainted galvanized steel, and the inner sheet is perforated prepainted galvanized steel.
Production in various color options.
Usage for sound insulation and acoustic improvement.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Roof Panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,23 W/m2K depending on the panel thickness.

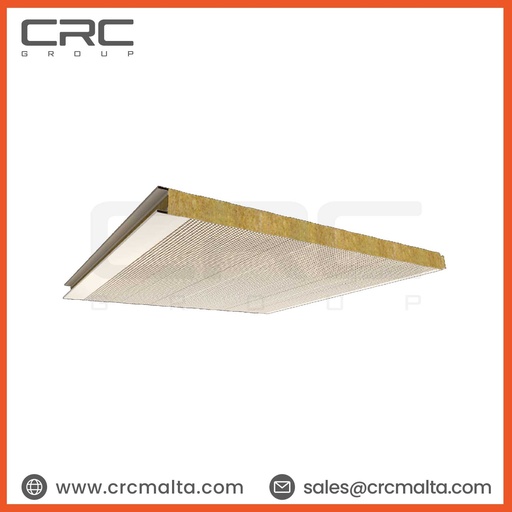

Lined-type outer sheet.
The outer sheet is prepainted galvanized steel, and the inner sheet is perforated prepainted galvanized steel.
Both vertical and horizontal cladding.
External fixing joint detail.
Usage for sound insulation and acoustic improvement.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels.
Production flexibility at any ordered length between 2m & 8m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness.

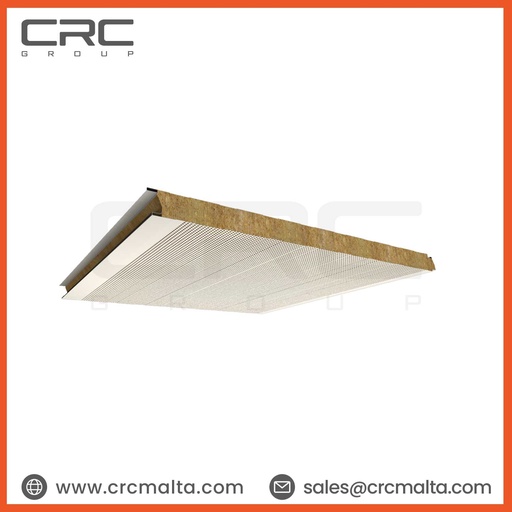

Lined type outer sheet.
The outer sheet is prepainted galvanized steel, and the inner sheet is perforated prepainted galvanized steel
Both vertical and horizontal cladding.
Secret fixing joint detail.
Usage for sound insulation and acoustic improvement.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels.
Production flexibility at any ordered length between 2m & 8m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness.

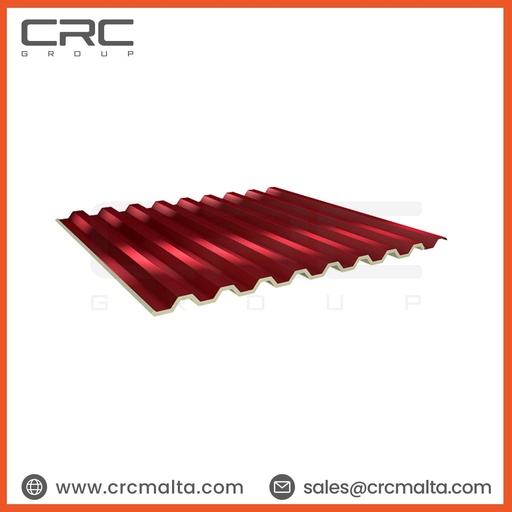

Outer Sheet: 9 Ribs Profiled
Outer Sheet Metal Type: Pre-painted Galvanized Sheet
Outer Sheet Color: RAL 9002, RAL 3004
Sheet Thickness: 0,40 – 0,50 – 0,60 mm
Length Options: 4, 5, 6, 7, 8 linear meter
Insulation Core: Polyurethane
Insulation Thickness: 15 mm
Inner Sheet: Polyethylene Film or optional Aluminum Foil

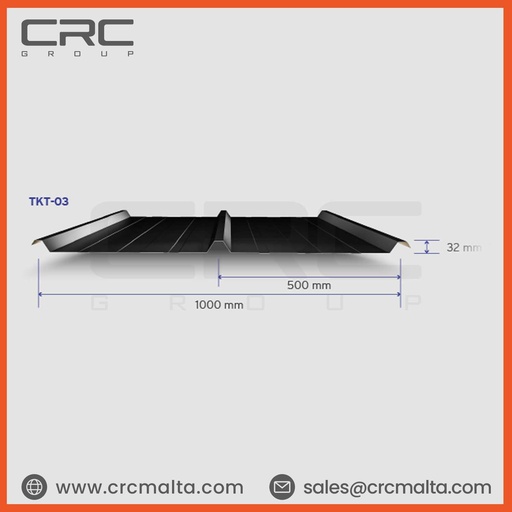

Usage as the complementary product with the 3 and 5 ribs sandwich roof panel profiled.
Prepainted galvanized steel or aluminum option.
Production in various color options.
Production flexibility at any ordered length between 2m & 16m.
Sheet thickness options 0,40-0,50-0,60-0,70-0,80 mm.
Possibility to apply on roof and wall as single layer or double layer with thermal insulation.
ISO, TSE, and CE quality certificates.

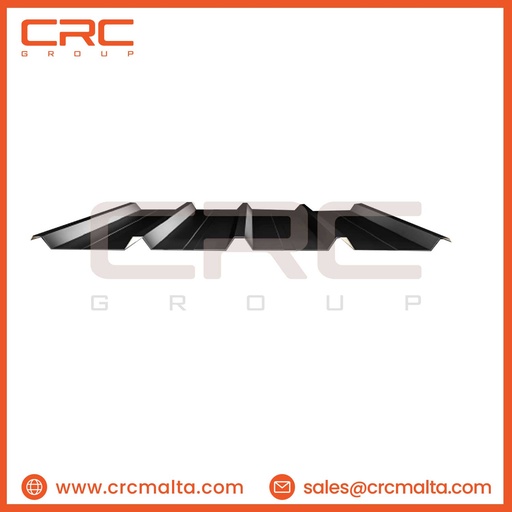

Usage as a complementary product with the 3 and 5 ribs sandwich roof panel profiled.
Prepainted galvanized steel or aluminum option.
Production in various color options.
Production flexibility at any ordered length between 2m & 16m.
Sheet thickness options 0,40-0,50-0,60-0,70-0,80 mm.
Possibility to apply on roof and wall as single layer or double layer with thermal insulation.
ISO, TSE, and CE quality certificates.
