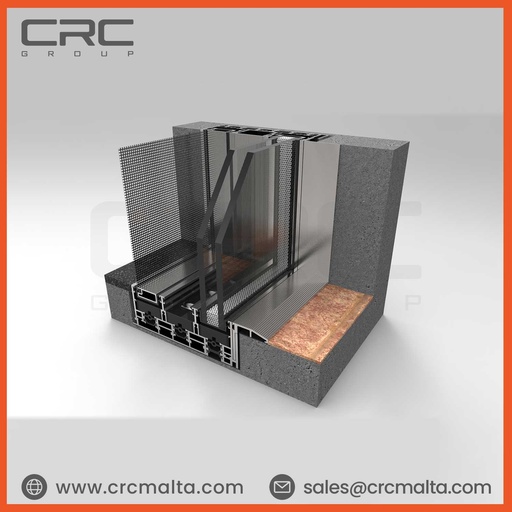

The system responds to all dimensional needs, adapting to any small or large opening. The frame's profiles, already reduced to the essentials, can be integrated entirely into the floor, ceiling, and walls. Only the profiles of the sliding, slender, and light doors with a visible width of only 20 mm will remain visible.

THERMAL CUTTING: made with PA 6.6 polyamide rods 25% reinforced with glass fiber having a width of 24 mm.
GLASS VOICE: 32 - 24 - 10 mm thick.
BASIC SYSTEM DIMENSION: Fixed frame: section 104 mm Mobile frame/door: 34 mm.

Fixed frame: section 68 mm Mobile frame/door: 71 mm Escape between the frame and moving door: 5 mm Escape to the central node: 5 mm Wall stop flap: from 25 - 35 mm.

TYPE OF WATER HOLDING: Open joint and European chamber.
THERMAL CUTTING: made with PA 6.6 polyamide rods 25% reinforced with glass fiber having a width of 34 mm.
GLASS VOICE: from 30 to 71 mm thick.

The system responds to all dimensional needs, adapting to any small or large opening. The frame's profiles, already reduced to the essentials, can be integrated entirely into the floor, ceiling, and walls. Only the profiles of the sliding, slender, and light doors with a visible width of only 20 mm will remain visible.

THERMAL CUTTING: made with PA 6.6 polyamide rods 25% reinforced with glass fiber having a width of 24 mm.
GLASS VOICE: 65 mm thick.
BASIC SYSTEM DIMENSION: Fixed frame: section 188 mm Mobile frame/door: 67 mm.
