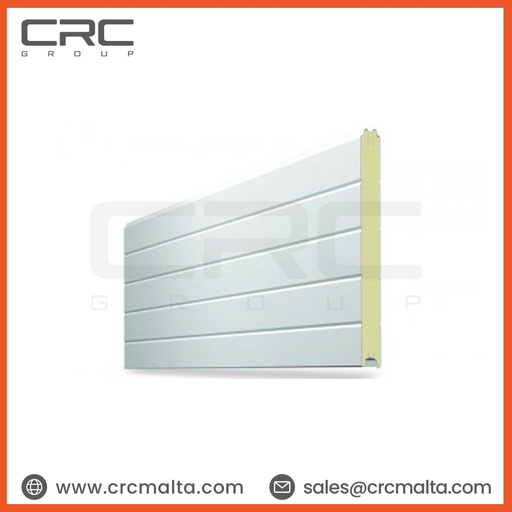

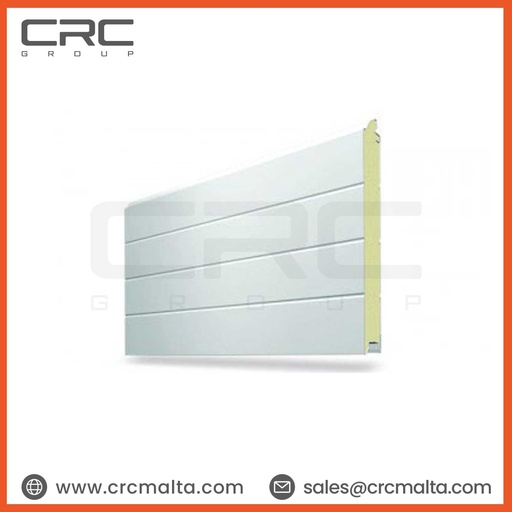

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Ribbed
Internal support profile: Ribbed.
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Ribbed
Internal support profile: Ribbed.
Thicknesses (mm): 40 – 80

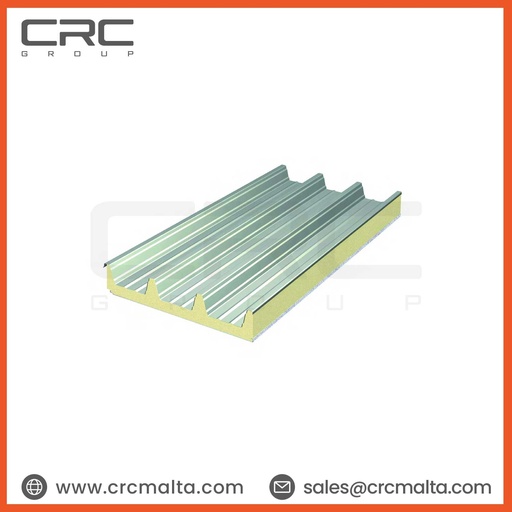

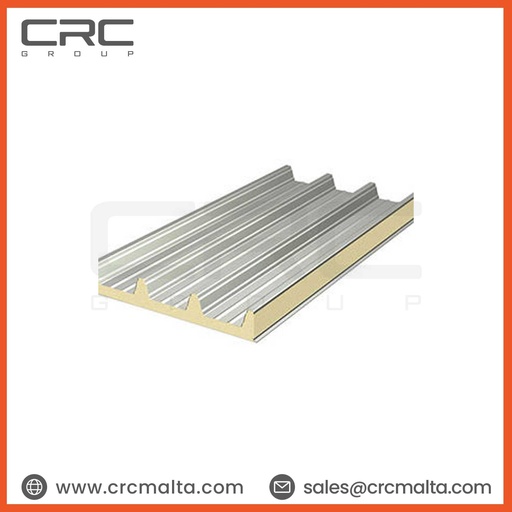

Self-supporting roof panel with polyurethane foam insulation, used for industrial and commercial buildings roofs.

4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
Working width: 1.000 mm
Thicknesses (mm): 50-80-100-120-150

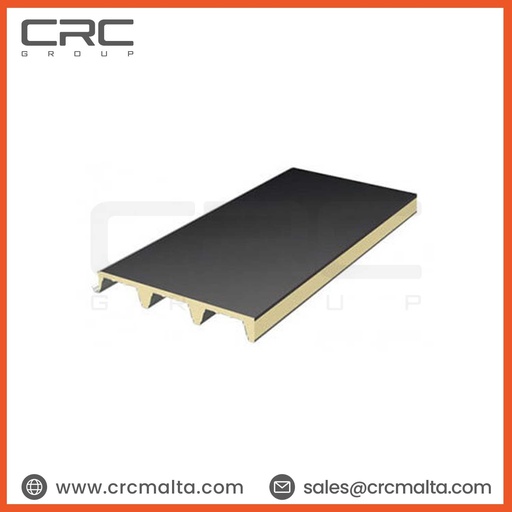

Self-supporting single sheet panel with polyurethane foam insulation used for low slope roofs.

4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
Working width: 1.000 mm
Thicknesses (mm): 50-80-100-120-150

Self-supporting single-sheet roof panel with polyurethane foam insulation is used for industrial and commercial building roofs.

Thicknesses (mm): 50 – 80 – 100 – 120 – 150
Ribs’ height: 106 mm.
Ribs’ breath: 333 mm.
Working width: 1.000 mm.

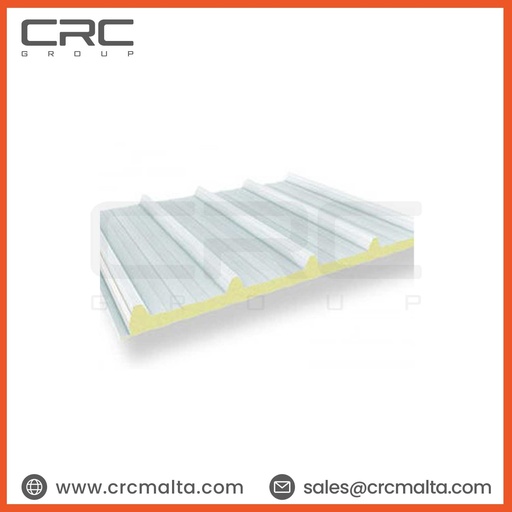

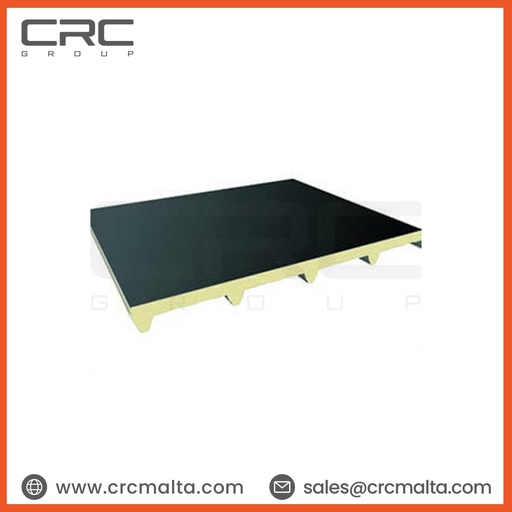

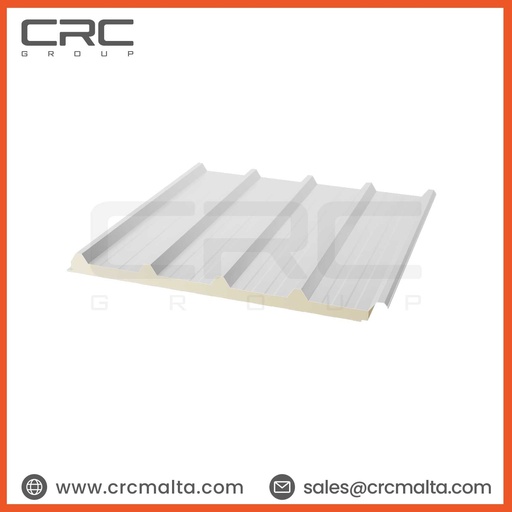

Self-supporting roof single sheet panel with polyurethane foam insulation used for low slope roofs.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Working width: 1.000 mm
Thicknesses(mm): 20-30-40-50-60-80-100

Self-supporting roof single sheet panel with polyurethane foam insulation, used for industrial roofs, with minimun 7 % slope.

5 ribs , ribs’ height 40 mm, ribs’breath 250 mm.
Working width: 1.000 mm
Thicknesses (mm) : 20 – 30 – 40 – 50 – 60 – 80 – 100

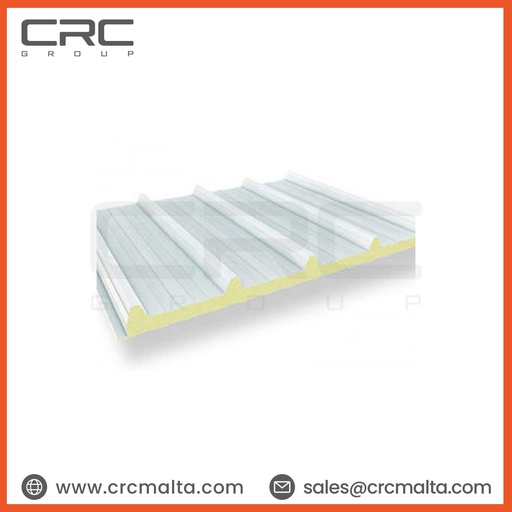

Self-supporting roof panel with polyurethane foam insulation, used for industrial, commercial and civil buildings roofs, with a 7 % minimun slope.

Thicknesses (mm) : 30 – 40 – 50 – 60 – 80 – 100 -120 150
Ribs’ height : 40 mm.
Ribs’ breath: 250 mm.
Working width : 1.000 mm.

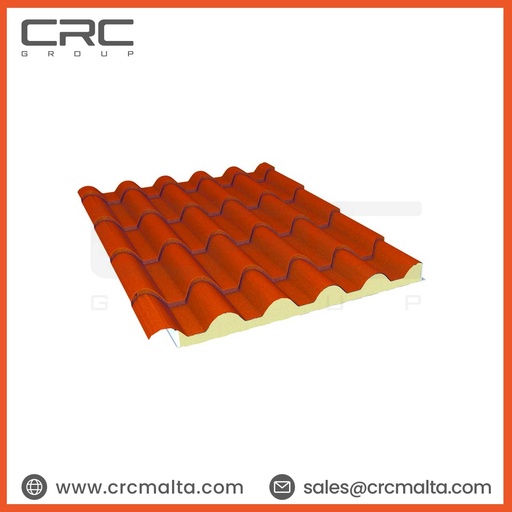

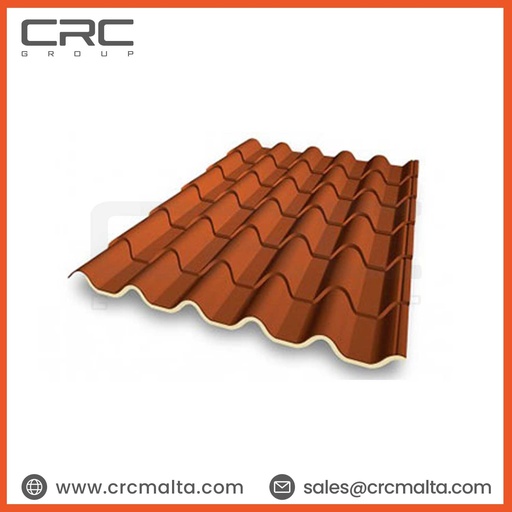

Self-supporting roofing panel with polyurethane foam insulation, intended for roofs of civil and agricultural buildings with a minimum slope of 13%.

Useful width: 1,000 mm
Medium thicknesses (mm): 53-68-105

Italcoppo profile corrugated sheet covered with 1.5 cm of bare polyurethane.

Useful width: 1,000 mm
Thickness (mm): 15 mm
External supports: prepainted steel, prepainted aluminum, copper
Interior: naked polyurethane
Version 1: 70/110 – ridge side/eaves side
Version 2: 175/175 – ridge side/eaves side

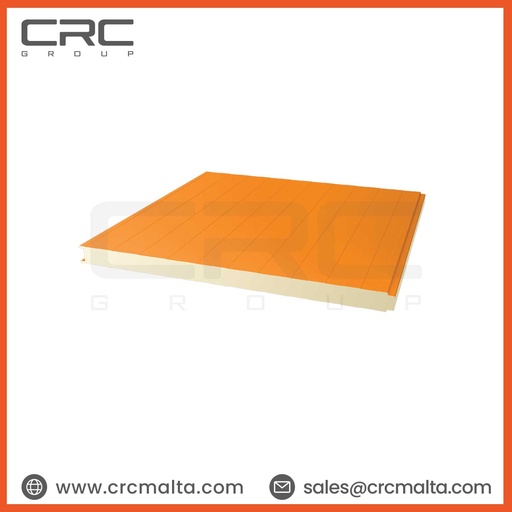

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity: Between 0,49 - 0,11 W/m2K

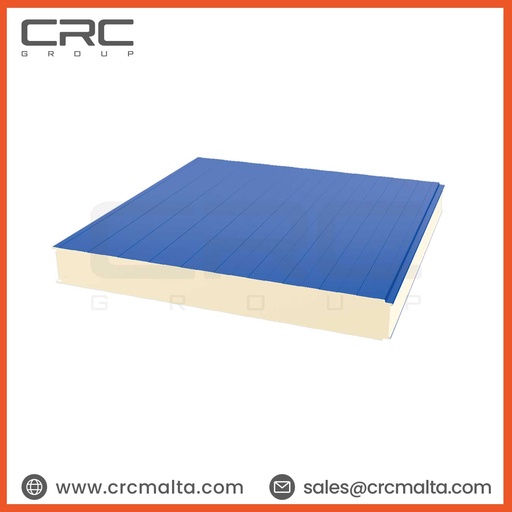

Outer Face - Inner Face: Painted Galvanized Sheet - Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity: Between 0,49 - 0,11 W/m2K

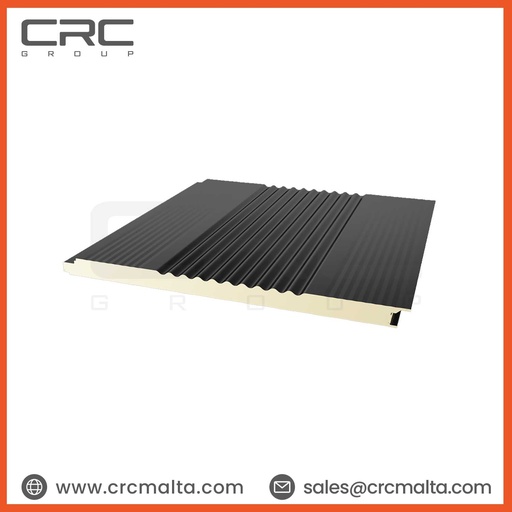

Outer Face - Inner Face Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

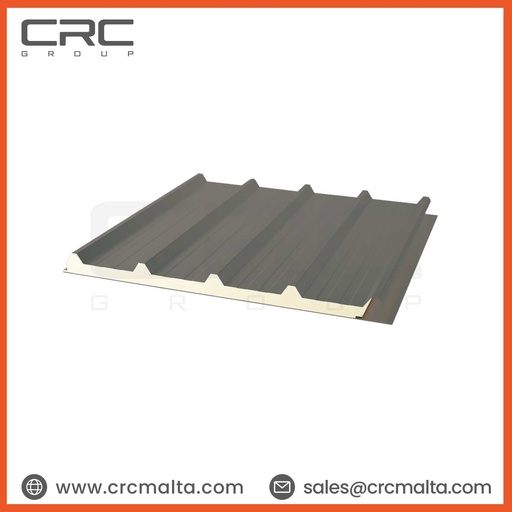

Outer Face - Inner Face: PVC Membrane, Painted Galvanized Sheet
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

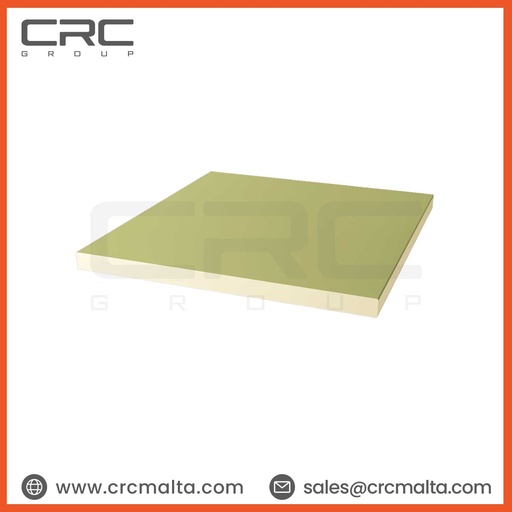

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet And Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanised Sheet - Painted Galvanised Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K
