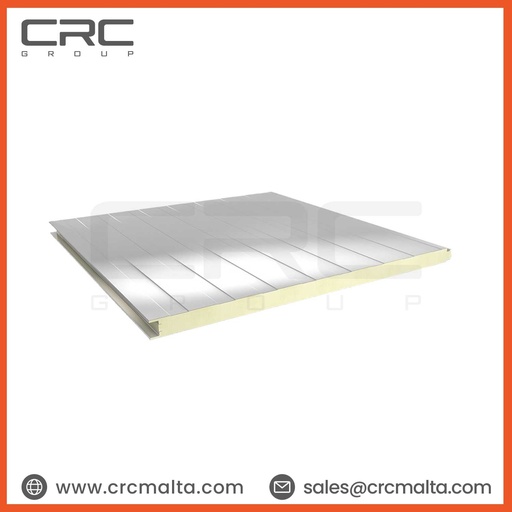

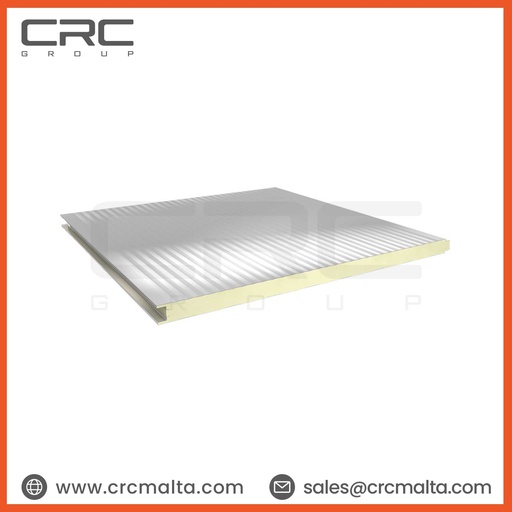

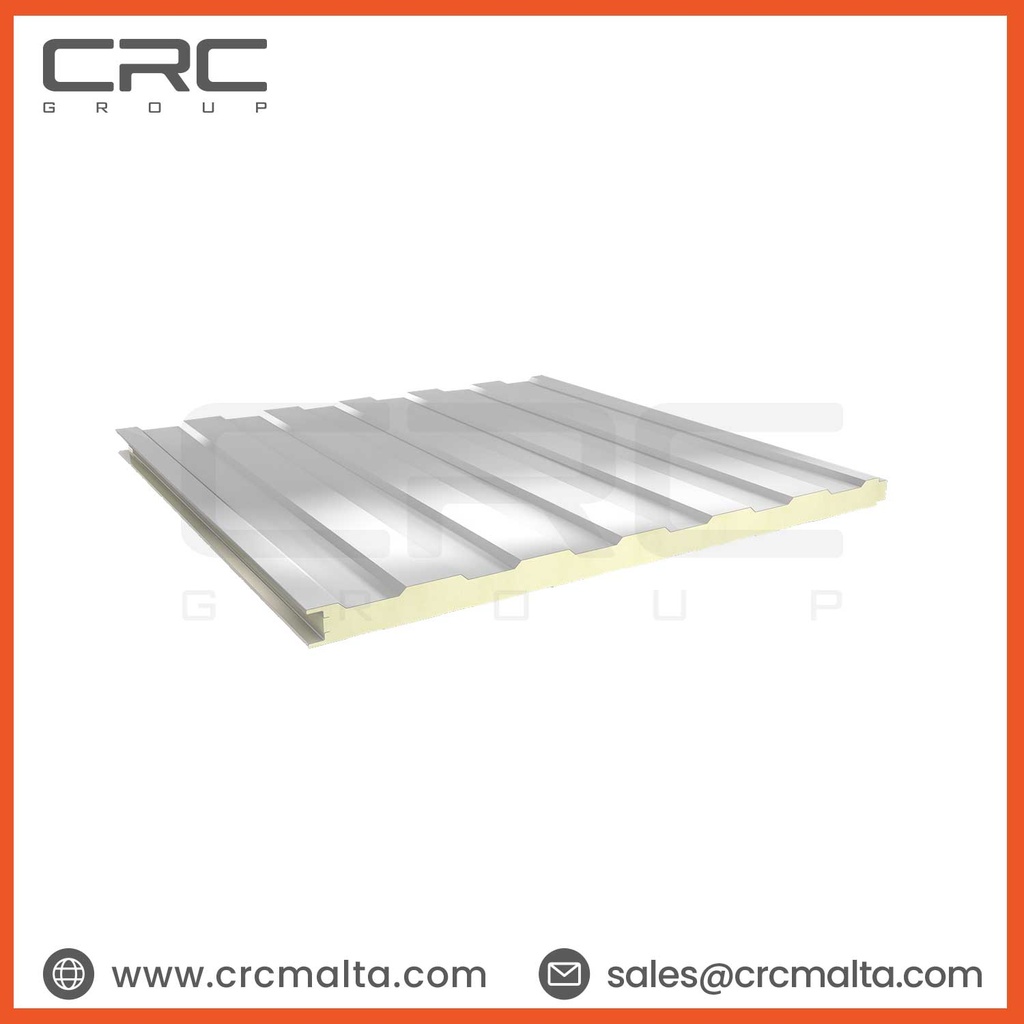

Lined, micro-lined, and deeply lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,57 – 0,11 W/m2K for lined and micro-lined lined, and 0,57 – 0,37 W/m2K for deep lined depending on the panel thickness.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation
ISO, TSE, and CE quality certificates.

Lined, micro-lined and deep-lined surface-type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated wall panels,B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2 m & 12 m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between0,57 – 0,11 W/m2K for lined and micro lined, 0, 57 – 0,37 W/m2K for deep lined depending on the panel thickness.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.

Lined, micro-lined, and deep-lined surface-type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,57 – 0,11 W/m2K for lined and micro-lined lined, and 0,57 – 0,37 W/m2K for deep lined depending on the panel thickness.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.

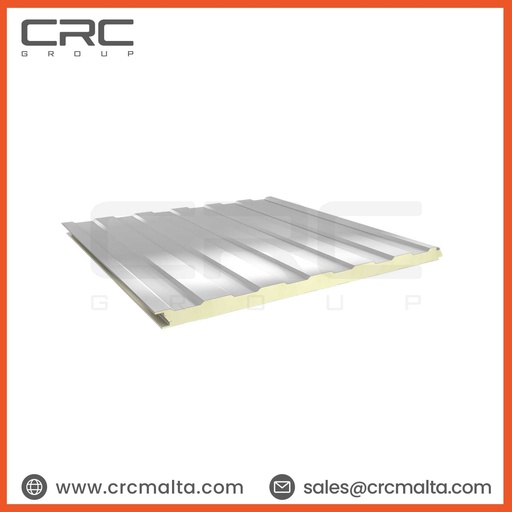

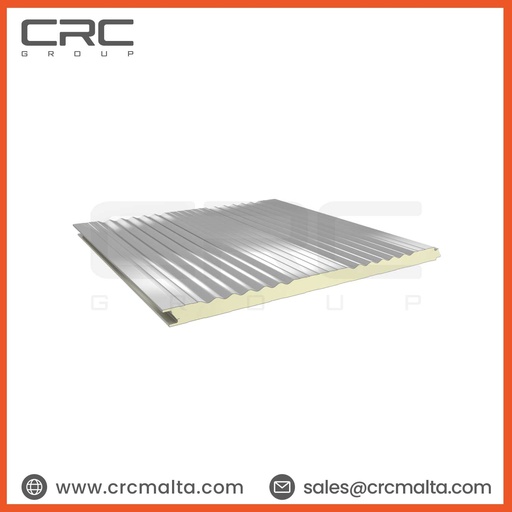

Lined, micro lined, deep lined, and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,67 – 0,11 W/m2K for lined and micro lined 0,67 – 0,42 W/m2K for deep lined depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR* insulation
ISO, TSE, CE quality certificates and FM Approval Certificates.

Lined, micro lined, deep lined and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,67 – 0,11 W/m2K for lined and micro lined 0,67 – 0,42 W/m2K for deep lined depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR insulation.
ISO, TSE, CE quality certificates and FM Approval Certificates.

Sinus and lined surface type.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Secret fixing joint detail.
Both vertical and horizontal cladding.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options, 40-50-60-70-75-80-100-120-150-180-200 mm.
Mineral Wool insulation alternative besides PUR and PIR insulation.

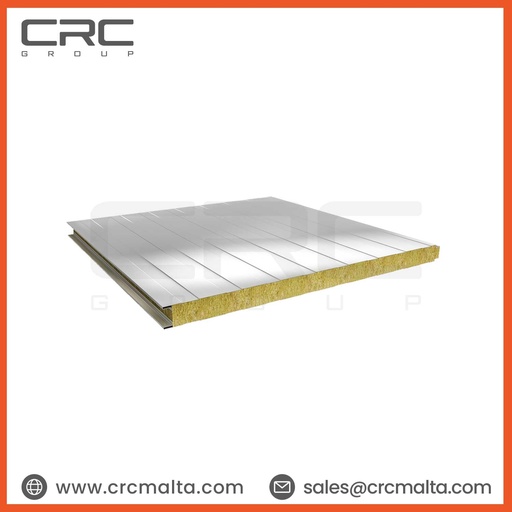

Lined and micro-lined surface-type options
Coated galvanize sheet inner and outer surface material.
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm
According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation
ISO, TSE, and CE quality certificates.

Lined and micro-lined surface type options.
Coated galvanize sheet inner and outer surface material.
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, and CE quality certificates.

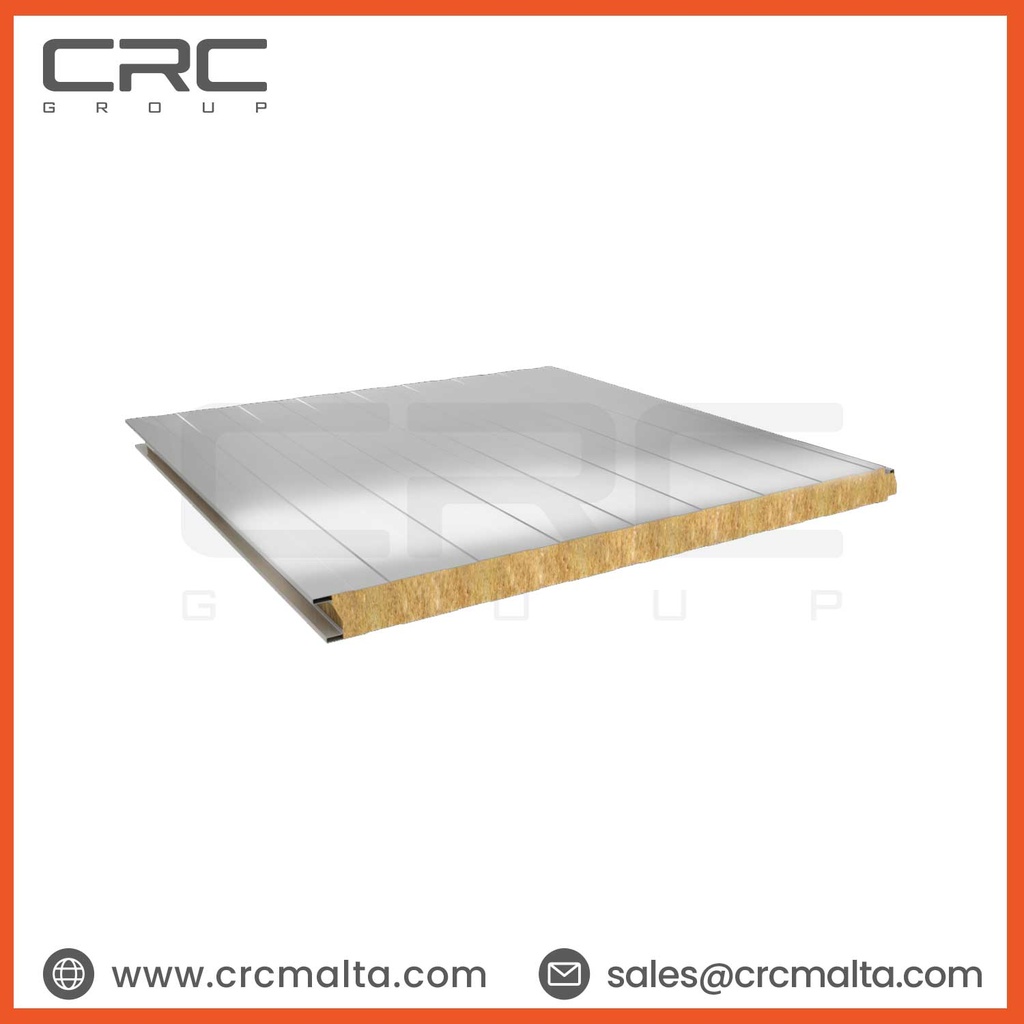

Lined, micro-lined and sinus & lined surface type options.
Coated galvanize sheet inner and outer surface material.
Production in various color options.
Secret fixing joint detail.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, CE quality certificates.

Lined, micro-lined and sinus & lined surface type options.
Coated galvanize sheet inner and outer surface material.
Production in various color options.
Secret fixing joint detail.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, CE quality certificates.

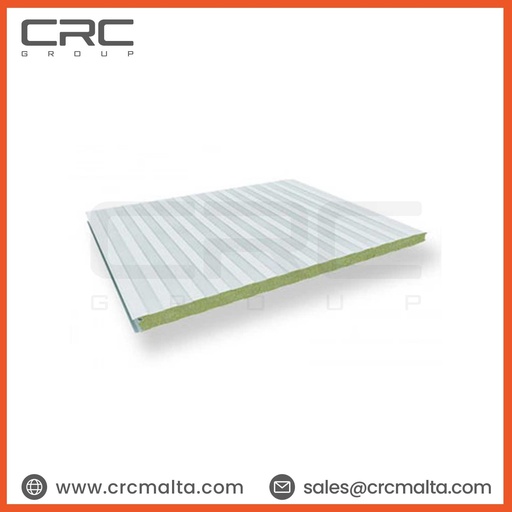

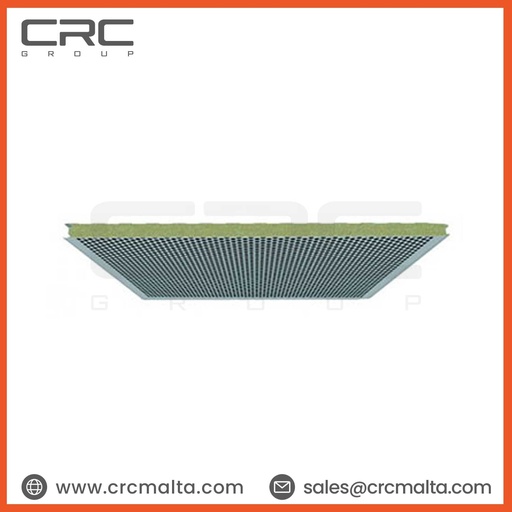

MEC W.A. is a self-supporting wall panel made of rock wool that provides sound insulation or sound absorption. It has a visible joint and internal micro locked support and it is used for wall or firewall with the need to have high performances about fire resistance, sound insulation and sound absorption.

Profile: Dogato/Special/Smooth
Internal support: micro locked smooth
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150-200

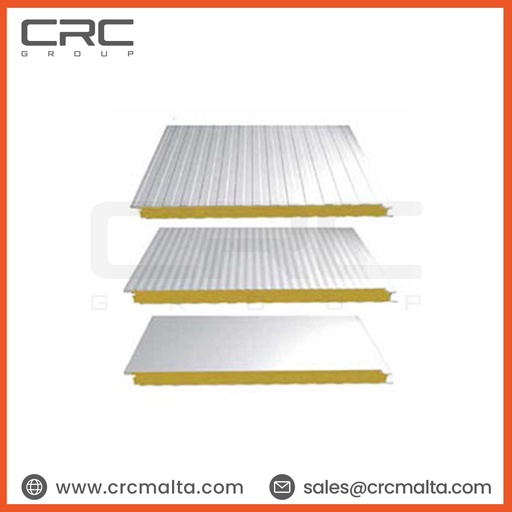

Self-supporting wall panel with rockwool insulation and visible joint used for wall or firewall where high fire reaction and fire resistance is needed.

Profile: Dogato/Special/Smooth
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150-200

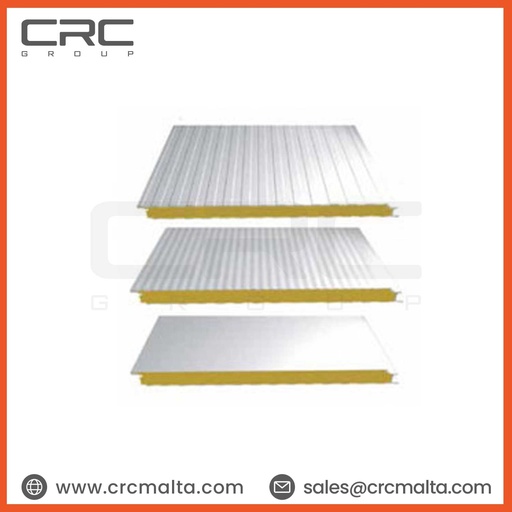

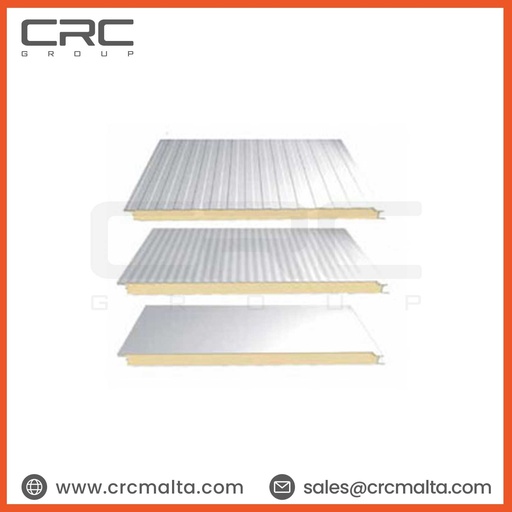

Self-supporting panel with polyurethane foam insulation.

External profile: Special/Dogato/Smooth
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80-100-120-150

Self-supporting wall panel with rockwool insulation.

External profile: Special/Dogato/Smooth
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150

Self-supporting wall panel with Rockwool insulation.

External profile: Special/Dogato/Smooth
Internal profile: micro-locked smooth
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150

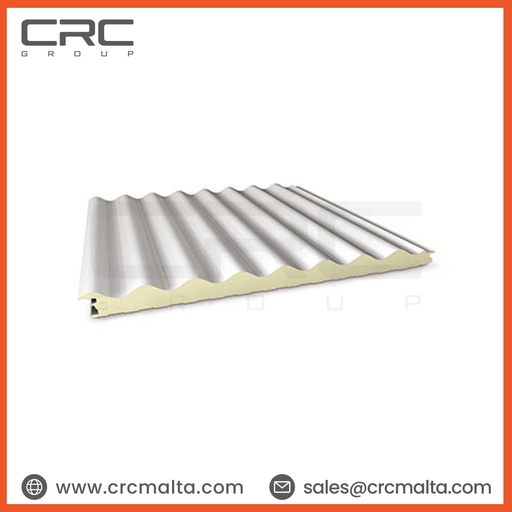

Self-supporting panel with polyurethane foam insulation.

8 waves, 24 mm wave height, 125 mm wave step
Working width: 1.000 mm
Thicknesses (mm): 66-86-106-126

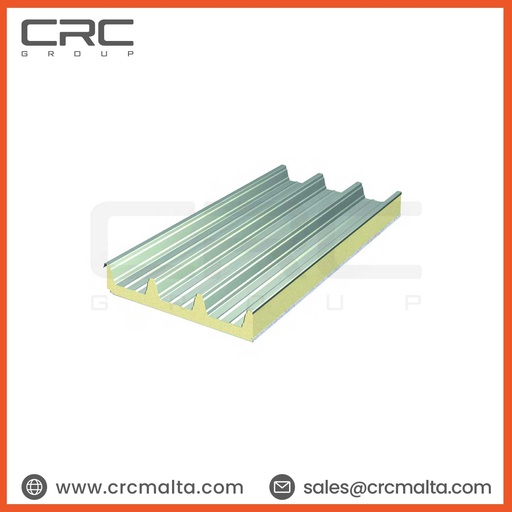

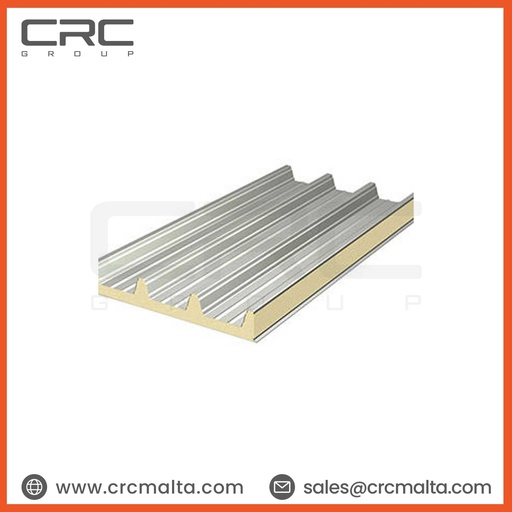

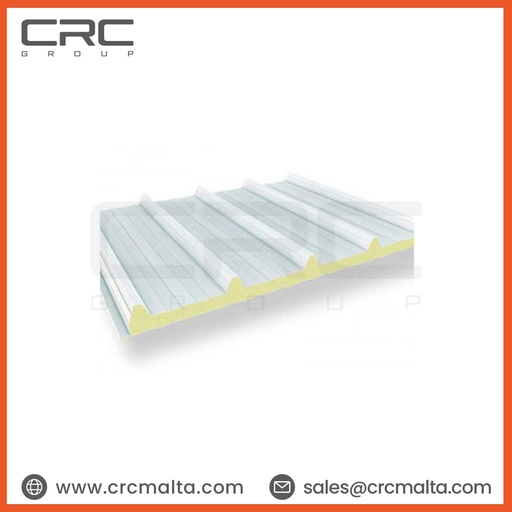

Self-supporting roof panel with polyurethane foam insulation, used for industrial and commercial buildings roofs.

4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
Working width: 1.000 mm
Thicknesses (mm): 50-80-100-120-150

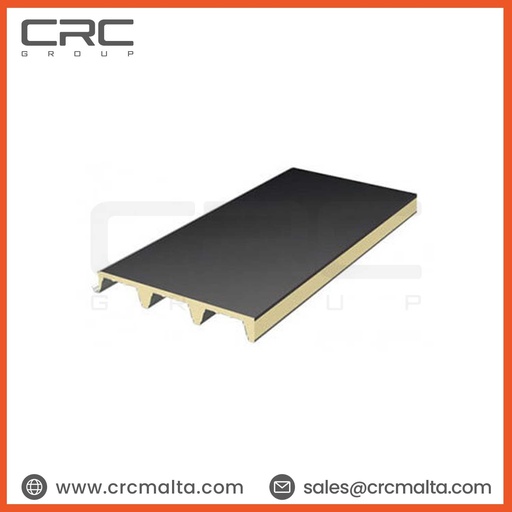

Self-supporting single sheet panel with polyurethane foam insulation used for low slope roofs.

4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
Working width: 1.000 mm
Thicknesses (mm): 50-80-100-120-150

Self-supporting single-sheet roof panel with polyurethane foam insulation is used for industrial and commercial building roofs.

Thicknesses (mm): 50 – 80 – 100 – 120 – 150
Ribs’ height: 106 mm.
Ribs’ breath: 333 mm.
Working width: 1.000 mm.

Self-supporting roof single sheet panel with polyurethane foam insulation used for low slope roofs.

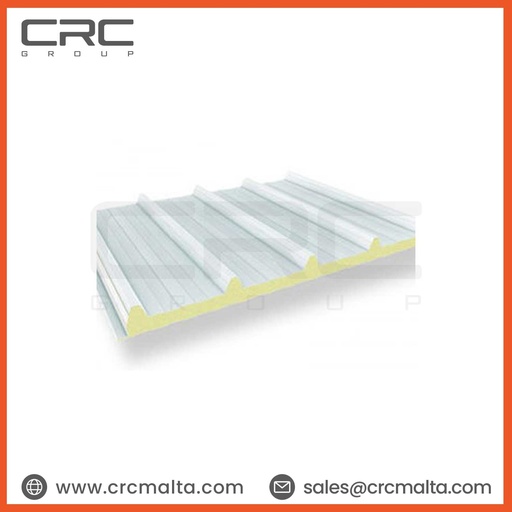

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Working width: 1.000 mm
Thicknesses(mm): 20-30-40-50-60-80-100

Self-supporting roof single sheet panel with polyurethane foam insulation, used for industrial roofs, with minimun 7 % slope.

5 ribs , ribs’ height 40 mm, ribs’breath 250 mm.
Working width: 1.000 mm
Thicknesses (mm) : 20 – 30 – 40 – 50 – 60 – 80 – 100

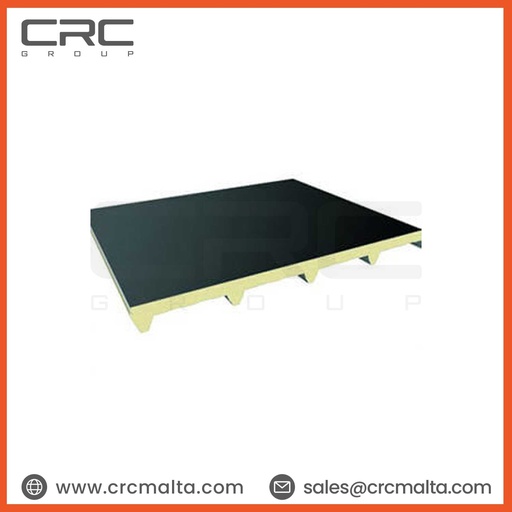

Self-supporting roof panel with polyurethane foam insulation, used for industrial, commercial and civil buildings roofs, with a 7 % minimun slope.

Thicknesses (mm) : 30 – 40 – 50 – 60 – 80 – 100 -120 150
Ribs’ height : 40 mm.
Ribs’ breath: 250 mm.
Working width : 1.000 mm.

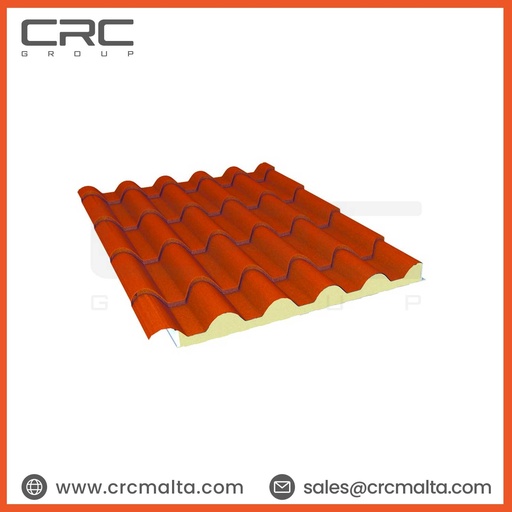

Self-supporting roofing panel with polyurethane foam insulation, intended for roofs of civil and agricultural buildings with a minimum slope of 13%.

Useful width: 1,000 mm
Medium thicknesses (mm): 53-68-105

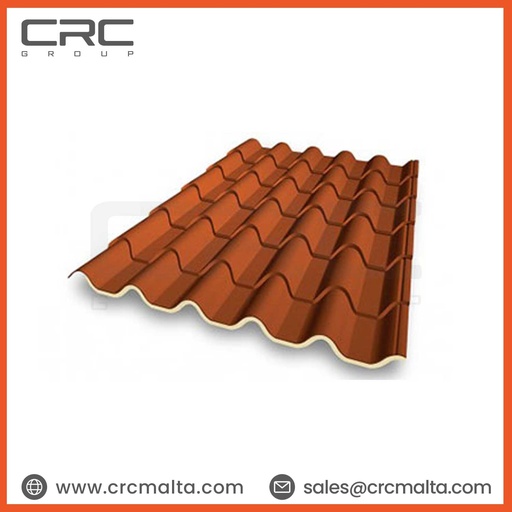

Italcoppo profile corrugated sheet covered with 1.5 cm of bare polyurethane.

Useful width: 1,000 mm
Thickness (mm): 15 mm
External supports: prepainted steel, prepainted aluminum, copper
Interior: naked polyurethane
Version 1: 70/110 – ridge side/eaves side
Version 2: 175/175 – ridge side/eaves side
