Acoustic PODs & Meeting Booths

Room-in-Room System is a single glazed room in room solutions for modern office concepts. The system enrich modern, open office concepts with high-grade retreat areas. As it can be freely positioned in rooms and enables efficient use of space. The cube can be flexibly configured, is highly soundproofed and has extremely functional equipment. The all-glass cube provides confidentiality in large open-plan offices without impairing their transparency and their open character. The elegant aluminium structure of Kubus I with its all-glass, externally-flush design fits smoothly into the existing architecture.


Design: Fully glazed cube with aluminium supporting structure and single glazing
Dimensions:
Lenghts: 2.706 / 3.956 / 5.206 mm
Width: 2.774 mm
Height: 2.500 mm
Glazing: 10 mm toughened glass / 16 mm laminated glass
Sound insulation: 10 mm
toughened glass: Dn,T,w = 28 dB (equivalent to R’w of approx. 34 dB) 16 mm
laminated glass: Dn,T,w = 32 dB (equivalent to R’w of approx. 39 dB)
Stability: Internal, statically approved support design
Multifunctional wall: Integrated absorber element and panel for securing screens
Ventilation: Integrated combined ventilation and air extraction device, output of up to 210 m3/h

As a Boxline movable wall glass partition system provides freedom for space design and usage. A Movable Wall Glass System with high technical values ensures panels hanging from the ceiling with a hidden rail element supply a high rate of sound insulation. Operating systems can be easily and practically directed. At this moment a huge space can be transformed into small spaces in a short time.


Design: Movable Glass Partition
Finish: Melamine, laminate, veneered, fabric
Track: Aluminium track - RAL 9010 colored
Operation: Manuel
Wall thickness: 100 mm
Construction: Aluminium construction profile resisted bending
Sound insulation: 41 dB

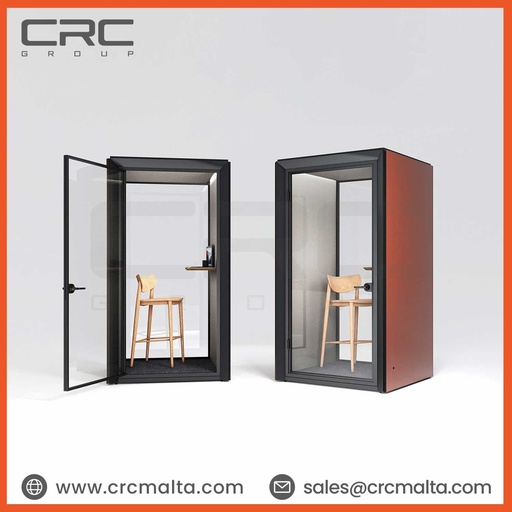

Small Acoustic POD Rooms are designed as a one-person workspace for private phone calls and highly concentrated work. It minimizes reflection and reverberation thanks to the sound-absorbing panels on interior walls and ceilings. It guarantees efficient use of space in modern open-plan offices with an area of approximately 1.6 m2.

Size: 1252 x 1252 x 2320 mm
Weight: 320 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

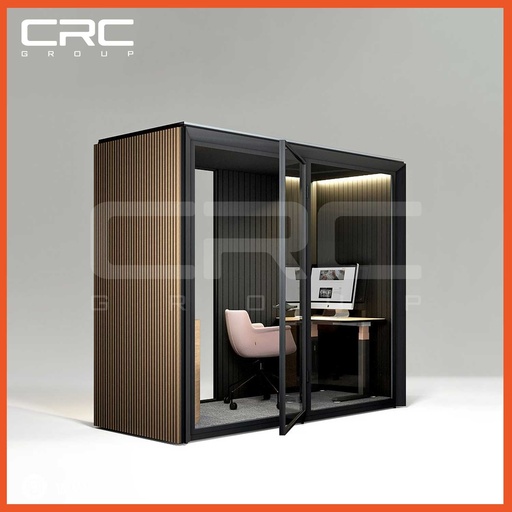

Medium Acoustic POD Rooms, formed by combining two small models, is a comfortable in-room solution. It provides a suitable working environment for employees to hold two-person or online meetings. It offers an elegant and aesthetic appearance thanks to the sound-insulated solid side panels and glass surfaces surrounded by the aluminum construction. It minimizes the annoying sound level up to 32 dB. Suitable for one or two people.

Size: 1252 x 2452 x 2320 mm
Weight: 640 kg
Ventilation: 19 dB, 180 m3/h
Solid Module: 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

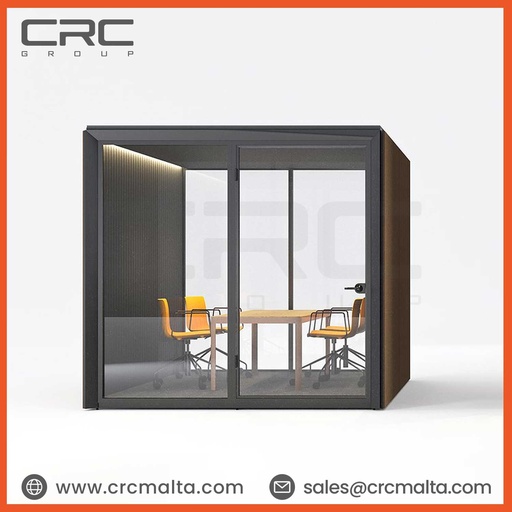

Large Acoustic POD Rooms is a high-quality room solution independent of interior spaces. It guarantees privacy thanks to its good sound insulation value for busy work, business deals, and video conferences, and allows a quiet environment to be created with acoustically optimized surfaces. It easily adapts to the office design concept with its optional interior and exterior panel options. It is suitable for the teamwork of four people.

Size: 2452 x 2452 x 2320 mm
Weight: 1280 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

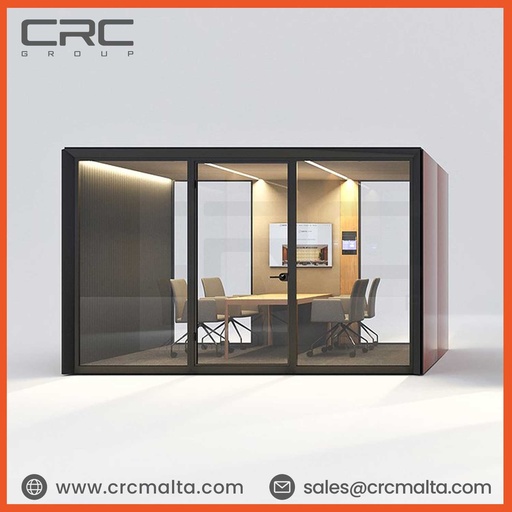

XL Acoustic POD Rooms is a high-quality room solution independent of interior spaces. It guarantees privacy thanks to its good sound insulation value for busy work, business deals, and video conferences, and allows a quiet environment to be created with acoustically optimized surfaces. It easily adapts to the office design concept with its optional interior and exterior panel options. It is suitable for teamwork of four and six people.

Size: 2452 x 3652 x 2320 mm
Weight : 1920 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

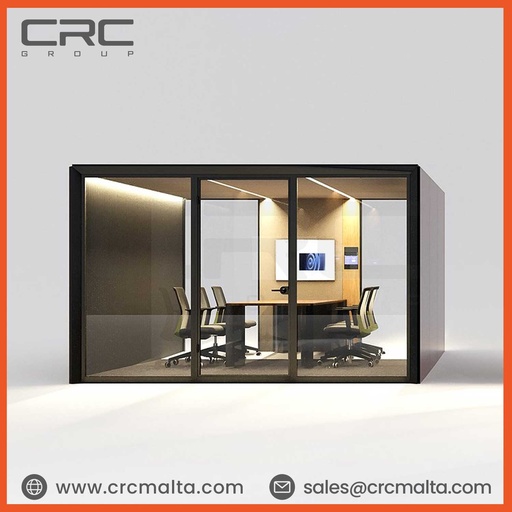

XXL Acoustic POD Rooms is a high-quality room solution independent of interior spaces. It guarantees privacy thanks to its good sound insulation value for busy work, business deals, and video conferences, and allows a quiet environment to be created with acoustically optimized surfaces. It easily adapts to the office design concept with its optional interior and exterior panel options. It is suitable for teamwork of four and six people.

Size: 3652 x 3652 x 2320 mm
Weight : 2880 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density, R’w = 30 dB

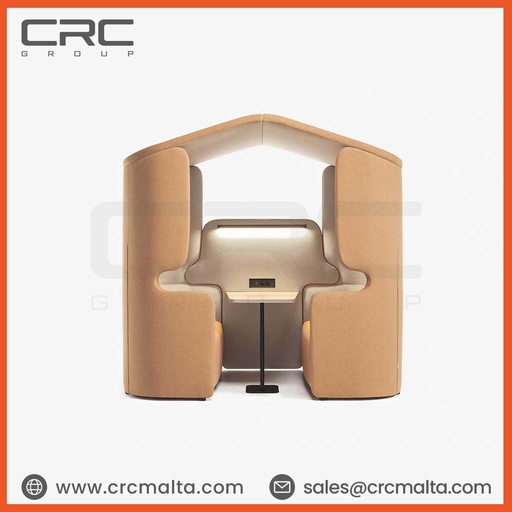

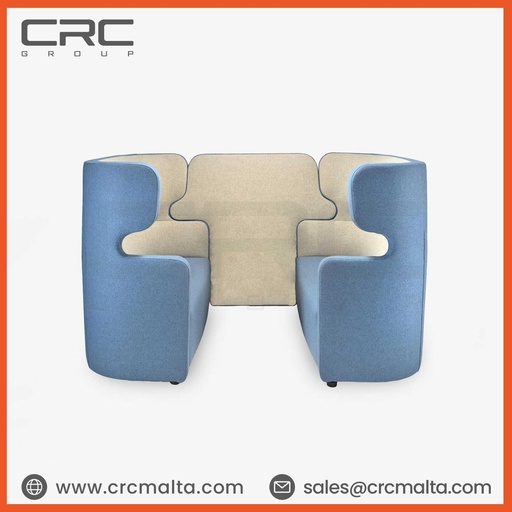

The pod version with its individual desk is perfect for waiting areas and meeting areas, guaranteeing the privacy required for open-plan environments. Flexible workstations, collaboration spaces and intimate niches define the offices of today and tomorrow.

We have added a higher backrest and a rooftop, for even higher isolation. Comes with medium or high panel and delivered with lighting and sockets included.

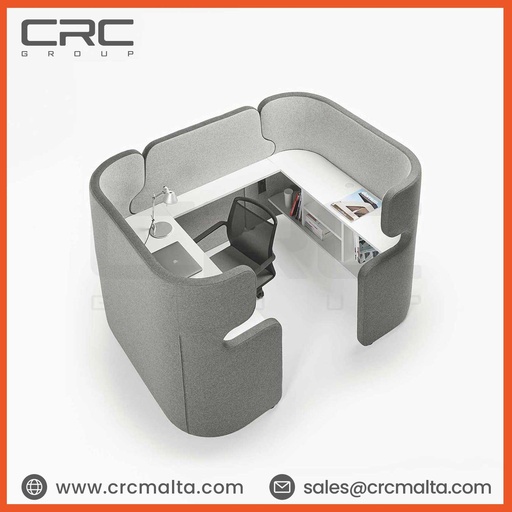

It transforms into a real workstation with desk, shelves and sockets for an autonomous and protected working space.
