Acoustic Panel

5 ribs profiled outer sheet
The outer sheet is prepainted galvanized steel, and the inner sheet is perforated prepainted galvanized steel.
Production in various color options.
Usage for sound insulation and acoustic improvement.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Roof Panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,23 W/m2K depending on the panel thickness.

Lined-type outer sheet.
The outer sheet is prepainted galvanized steel, and the inner sheet is perforated prepainted galvanized steel.
Both vertical and horizontal cladding.
External fixing joint detail.
Usage for sound insulation and acoustic improvement.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels.
Production flexibility at any ordered length between 2m & 8m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness.

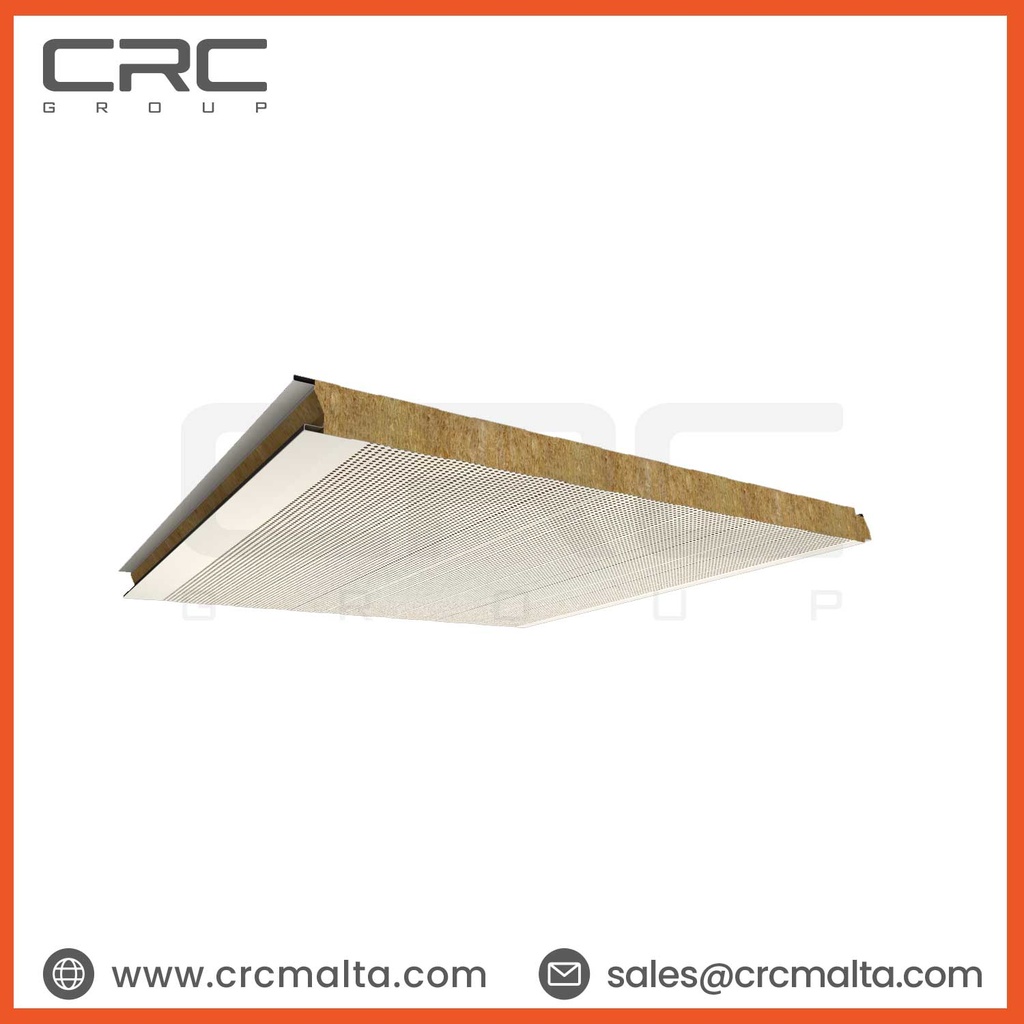

Lined type outer sheet.
The outer sheet is prepainted galvanized steel, and the inner sheet is perforated prepainted galvanized steel
Both vertical and horizontal cladding.
Secret fixing joint detail.
Usage for sound insulation and acoustic improvement.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels.
Production flexibility at any ordered length between 2m & 8m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness.
