Curved Panels

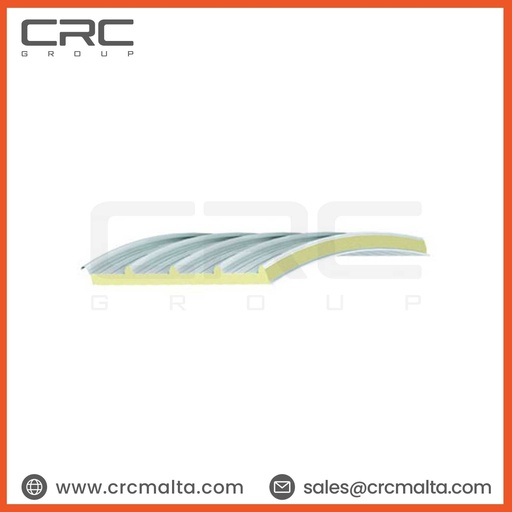

Self-supporting curved panel 6 meters radius with polyurethane foam insulation, used for roofing beams wing and “Y” prefabricated.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Radius: 6,00 m
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80-100

Self-supporting curved panel 6 meters radius with polyurethane foam insulation, used for roofing beams wing and “Y” prefabricated with internal support in fiber cement.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Internal support: fiber cement 4,00 mm
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80

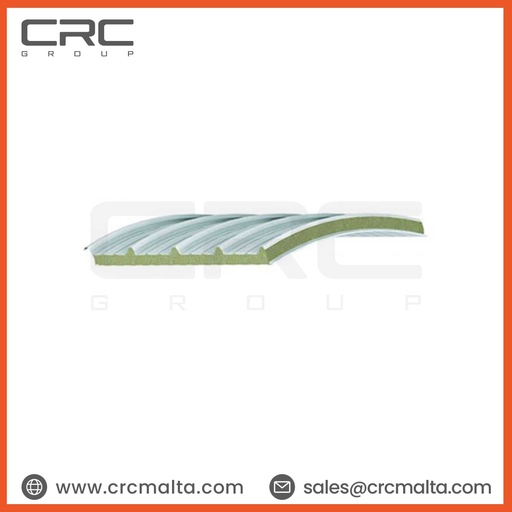

Self-supporting curved panel 6 meters radius with rockwool insulation, used for roofing beams wing and “Y” prefabricated.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Radius: 6,00 m
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100
