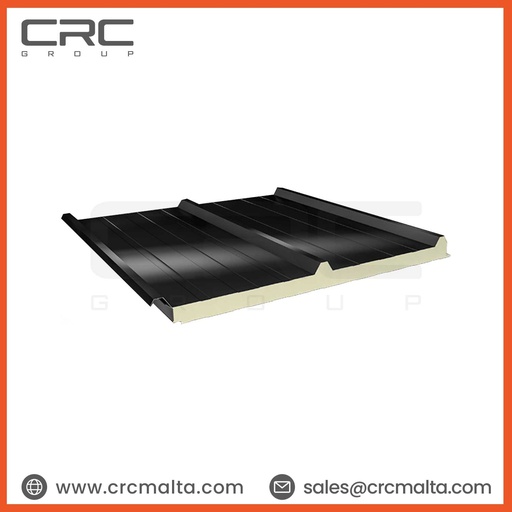

3 ribs profiled the outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m and 15m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.
Production at the factories in Mersin and Sakarya.

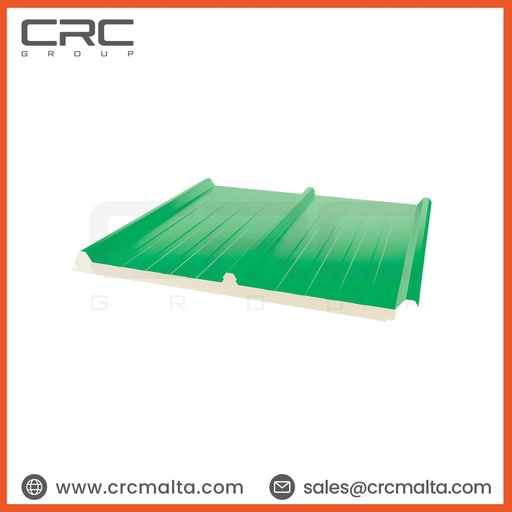

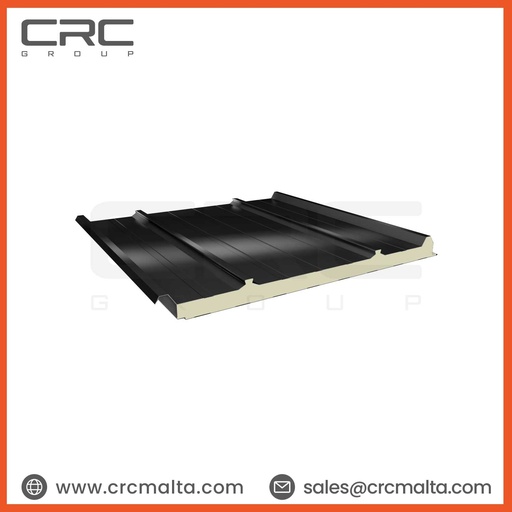

4 ribs profiled outer sheet is compatible with the solar panels.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options.
Application on roofs with a slope higher than 5%.
The clamp allows the solar panel to be mounted without drilling.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 15m.
Core thickness options 40-50-60 mm.
According to TS EN 14509, U values range between 0,49 – 0,34 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.
ISO, TSE, and CE certificates.

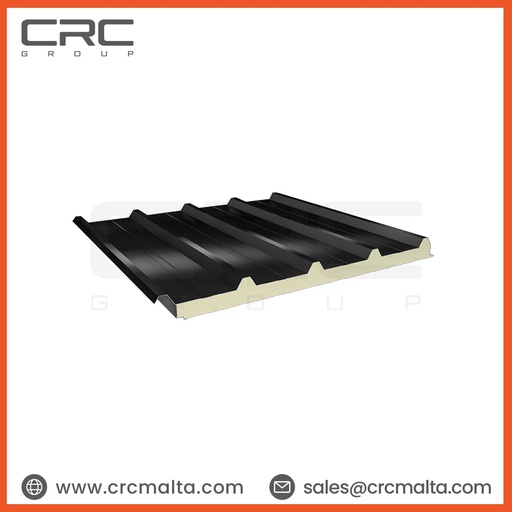

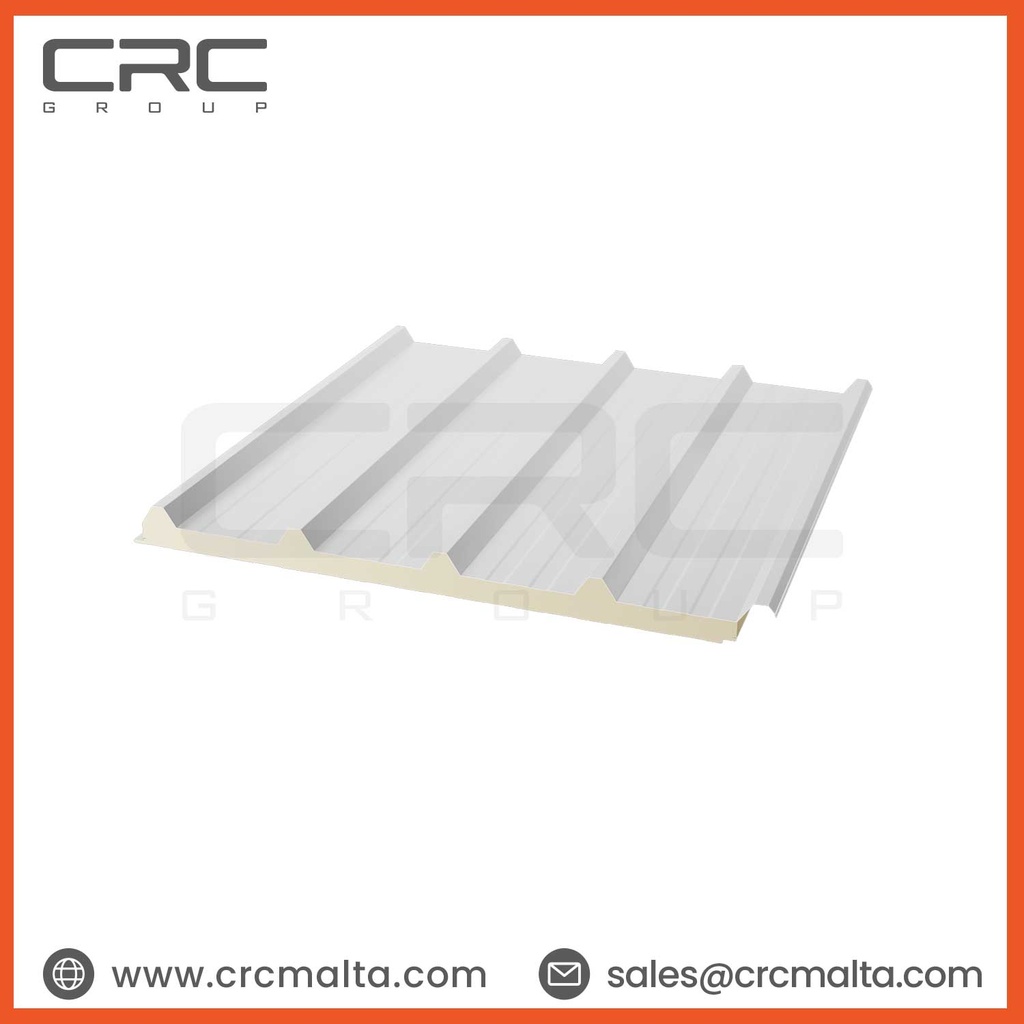

5 ribs profiled outer sheet.
I prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%
Fire performance according to TS EN 13501-1B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 15m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.

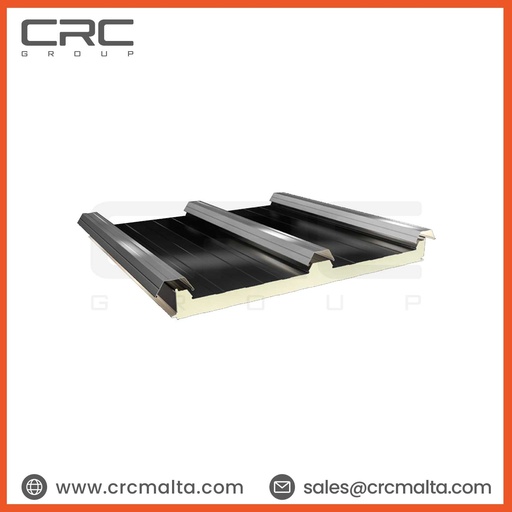

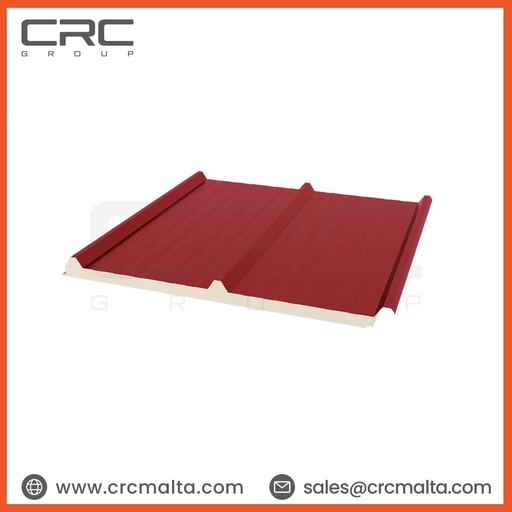

3 ribs profiled the outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Optional middle cap profile.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m - 15 m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,52 – 0,14 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.
ISO, TSE, CE quality certificates.

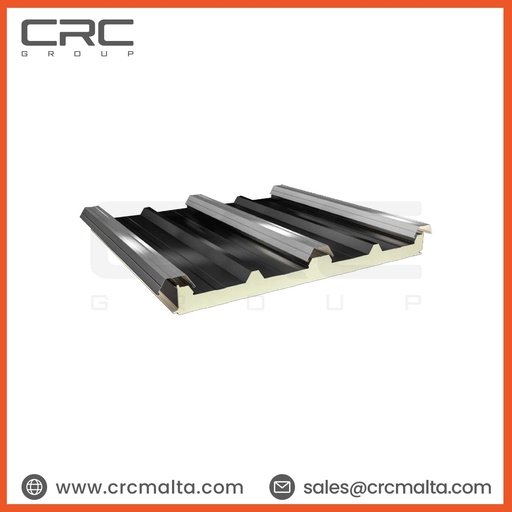

5 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Optional middle cap profile.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m - 15 m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,52 – 0,14 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.
ISO, TSE, CE quality certificates.

5 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Optional middle cap profile.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m and 15m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,52 – 0,14 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.
ISO, TSE, CE quality certificates.

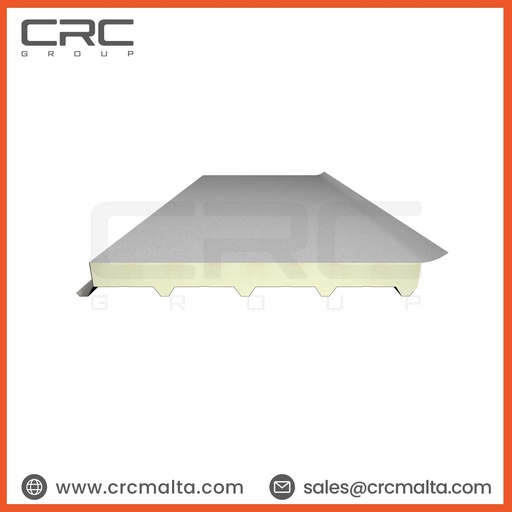

5 ribs profiled the inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is a PVC Membrane
Production in various color options.
Application of flat roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
PVC Membrane thickness options 1,20-1,50-1,80-2,00 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
Mineral Wool insulation alternatives. besides PUR and PIR insulation

5 ribs profiled the inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is a PVC Membrane
Production in various color options.
Application of flat roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
PVC Membrane thickness options 1,20-1,50-1,80-2,00 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
Mineral Wool insulation alternatives. besides PUR and PIR insulation

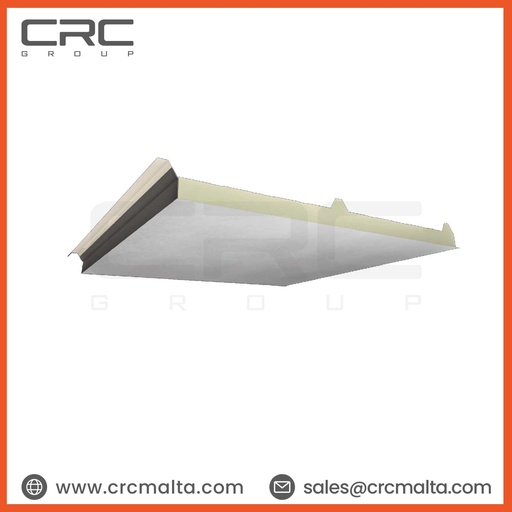

3 ribs profiled outer sheet.
Inner sheet is GRP, outer sheet is prepainted galvanized steel or aluminum
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to use at modern animal and poultry husbandry facilities, and environments requiring chemical resistance.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
GRP thickness options between 0,70 mm – 1,00 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

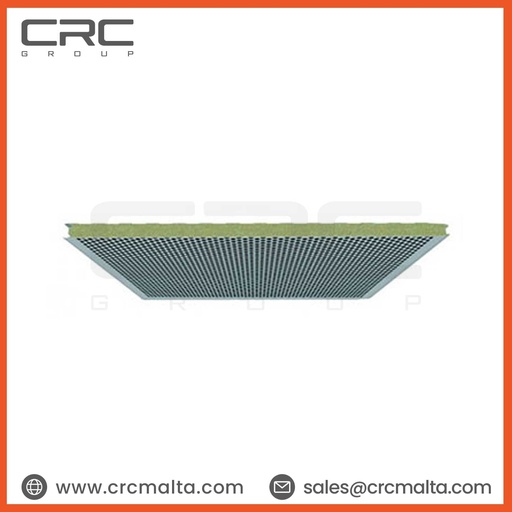

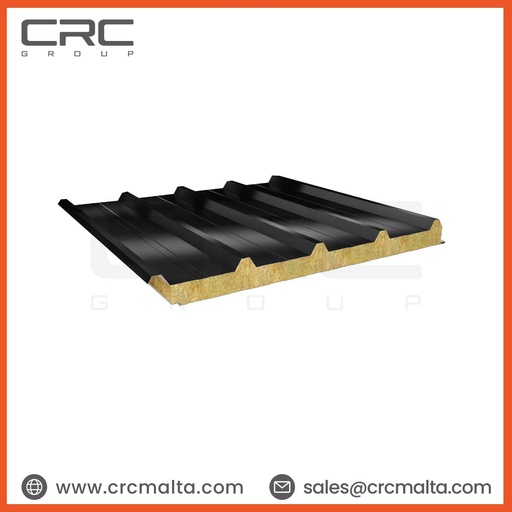

5 ribs profiled outer sheet.
I prepainted galvanized steel inner and outer sheet material.
Production in various color options.
Usage in buildings that require fire safety.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,63 – 0,23 W/m2K depending on the panel thickness.
PUR, PIR, and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, and CE quality certificates.

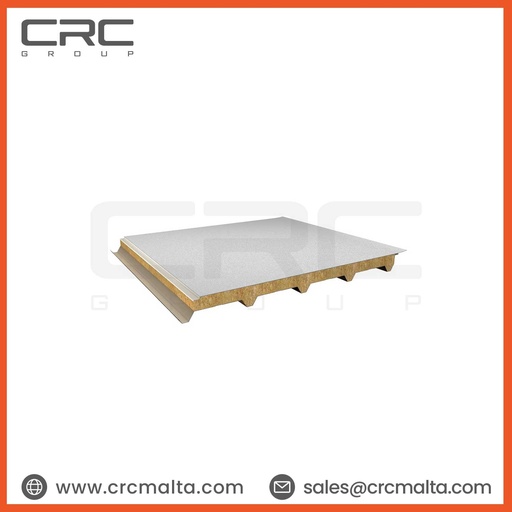

5 ribs profiled the inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is PVC or TPO Membrane.
Production in various color options.
Usage in buildings that require fire safety.
Application of terrace roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s1; d0 for Rock Wool insulated roof panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 50-60-80-100-120-150 mm.
PVC or TPO membrane thickness options 1,20-1,50-1,80-2,00 mm.
According to TS EN 14509, U values range between 0,62 – 0,23 W/m2K depending on the panel thickness.
PUR and PIR insulation alternatives besides Rock Wool insulation.

5 ribs profiled the inner sheet.
The inner sheet is prepainted galvanized steel, and the outer sheet is galvanized sheet coated with PVC membrane.
Production in various color options.
Usage in buildings that require fire safety.
Application of flat roofs and roofs with a slope lower than 5%.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 50-60-80-100-120-150 mm.
PVC membrane thickness options 1,20-1,50-1,80-2,00 mm.
According to TS EN 14509, U values range between 0,62 – 0,23 W/m2K depending on the panel thickness.
PUR and PIR insulation alternatives besides rock wool insulation.

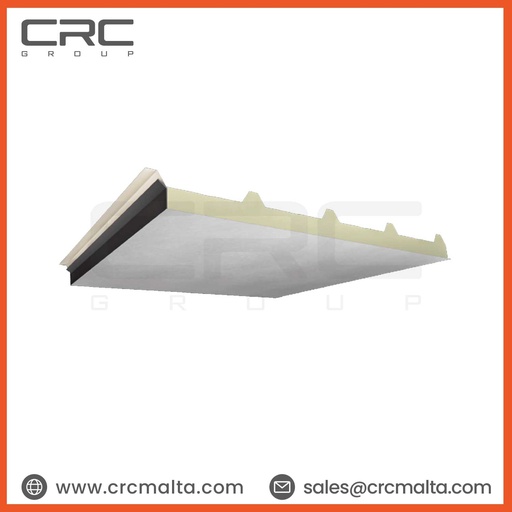

5 ribs profiled outer sheet
Inner sheet is GRP, outer sheet is prepainted galvanized steel or aluminum
Production in various color options.
Application on roofs with a slope higher than 5%.
Possibility to use at modern animal and poultry husbandry facilities, and environments requiring chemical resistance.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 12m
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
GRP thickness options between 0,70 mm – 1,00 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

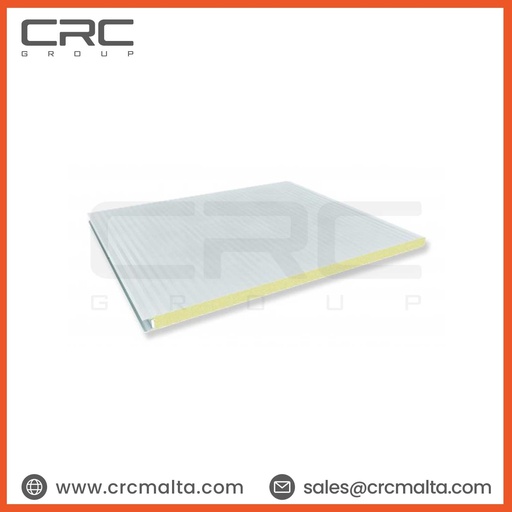

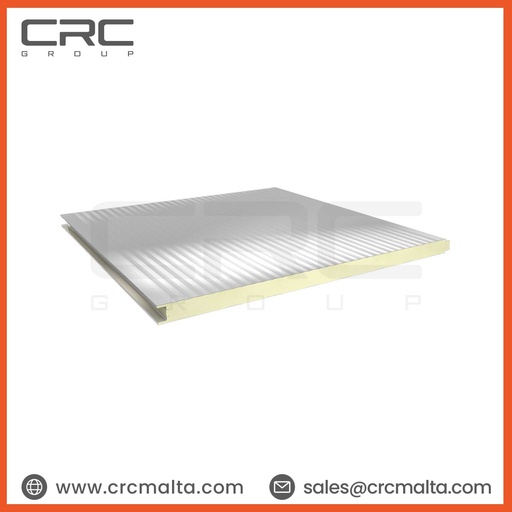

Lined, micro-lined, and deeply lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,57 – 0,11 W/m2K for lined and micro-lined lined, and 0,57 – 0,37 W/m2K for deep lined depending on the panel thickness.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation
ISO, TSE, and CE quality certificates.

Lined, micro-lined and deep-lined surface-type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated wall panels,B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2 m & 12 m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between0,57 – 0,11 W/m2K for lined and micro lined, 0, 57 – 0,37 W/m2K for deep lined depending on the panel thickness.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.

Lined, micro-lined, and deep-lined surface-type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,57 – 0,11 W/m2K for lined and micro-lined lined, and 0,57 – 0,37 W/m2K for deep lined depending on the panel thickness.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.

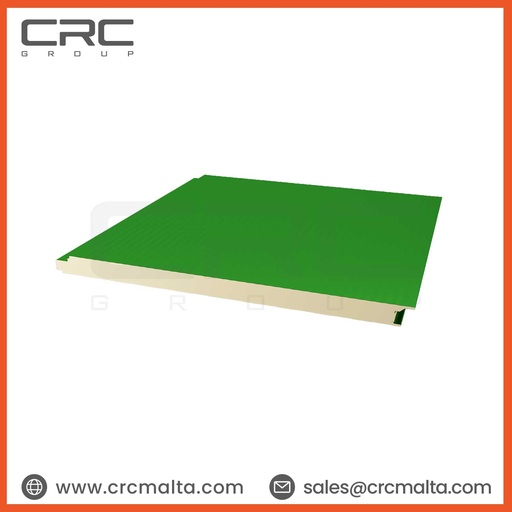

Lined, micro lined, deep lined, and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,67 – 0,11 W/m2K for lined and micro lined 0,67 – 0,42 W/m2K for deep lined depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR* insulation
ISO, TSE, CE quality certificates and FM Approval Certificates.

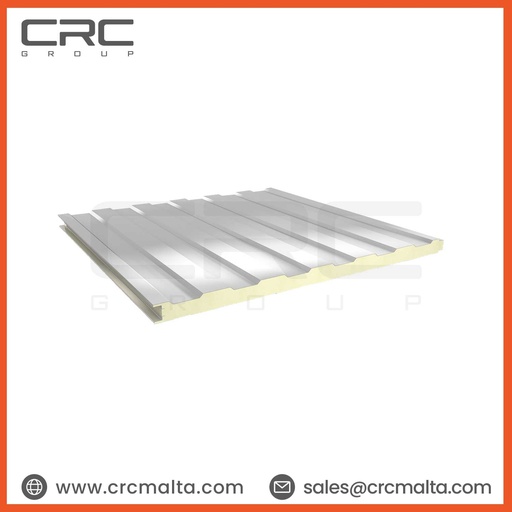

Lined, micro lined, deep lined and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm.
According to TS EN 14509, U values range between 0,67 – 0,11 W/m2K for lined and micro lined 0,67 – 0,42 W/m2K for deep lined depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR insulation.
ISO, TSE, CE quality certificates and FM Approval Certificates.

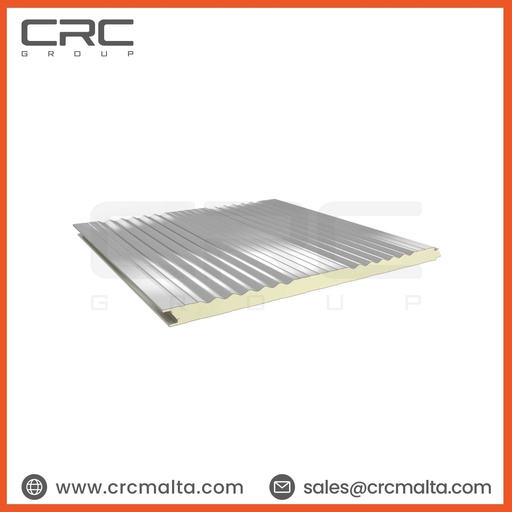

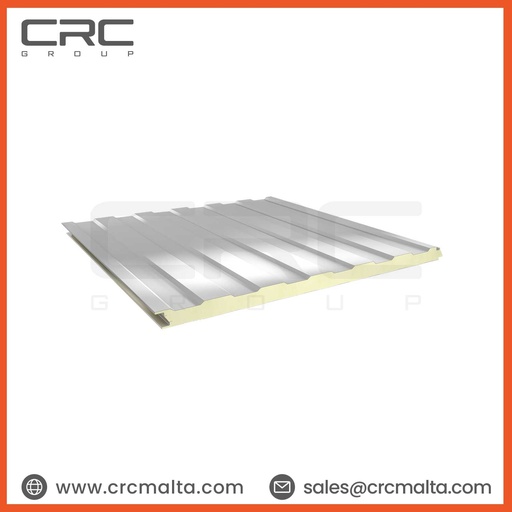

Sinus and lined surface type.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Secret fixing joint detail.
Both vertical and horizontal cladding.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options, 40-50-60-70-75-80-100-120-150-180-200 mm.
Mineral Wool insulation alternative besides PUR and PIR insulation.

Lined and micro-lined surface-type options
Coated galvanize sheet inner and outer surface material.
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm
According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation
ISO, TSE, and CE quality certificates.

Lined and micro-lined surface type options.
Coated galvanize sheet inner and outer surface material.
Production in various color options.
External fixing joint detail.
Both vertical and horizontal cladding.

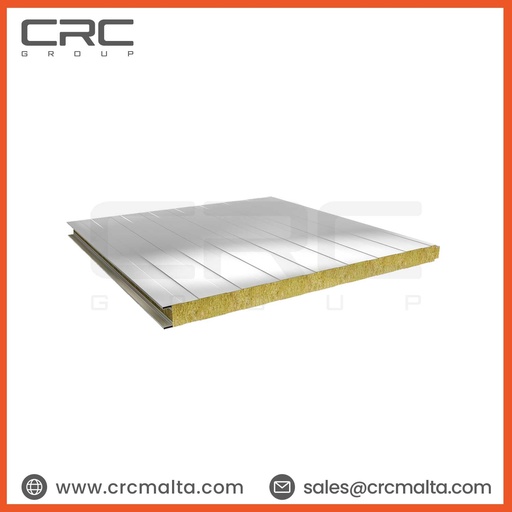

Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, and CE quality certificates.

Lined, micro-lined and sinus & lined surface type options.
Coated galvanize sheet inner and outer surface material.
Production in various color options.

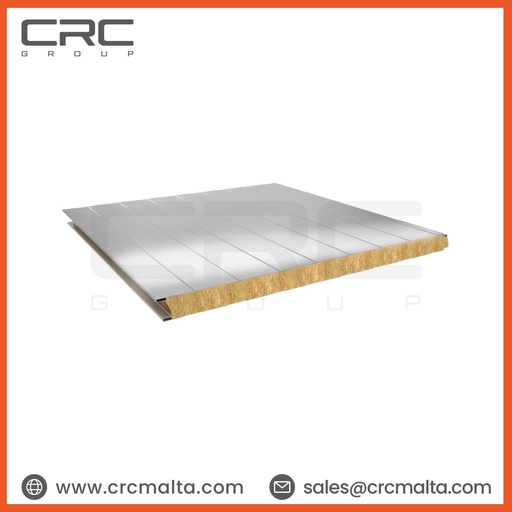

Secret fixing joint detail.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, CE quality certificates.

Lined, micro-lined and sinus & lined surface type options.
Coated galvanize sheet inner and outer surface material.
Production in various color options.
Secret fixing joint detail.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness.
PUR, PIR and EPS insulation alternatives besides Rock Wool insulation.
ISO, TSE, CE quality certificates.

Self-supporting roof panel with rock wool insulation intended for industrial, commercial and civil building roofs, with the need for high reaction and fire resistance performance.

5 Greek, Greek height 40 mm, Greek pitch 250 mm
Useful width: 1,000 mm
Thicknesses (mm): 50-60-80-100-120-150-200-240

Self-supporting roof panel with rockwool insulation and internal micro locked support, used for industrial, commercial and civil buildings, with the need to have sound insulation and sound absorption characteristics. The panel has to be assembled with a 7 % minimum slope.

5 ribs , ribs’ height 40 mm, ribs’breath 250 mm.
Working width: 1.000 mm
Thicknesses (mm): 50 – 60 – 80 – 100 – 120 – 150 – 200
Internal support micro locked

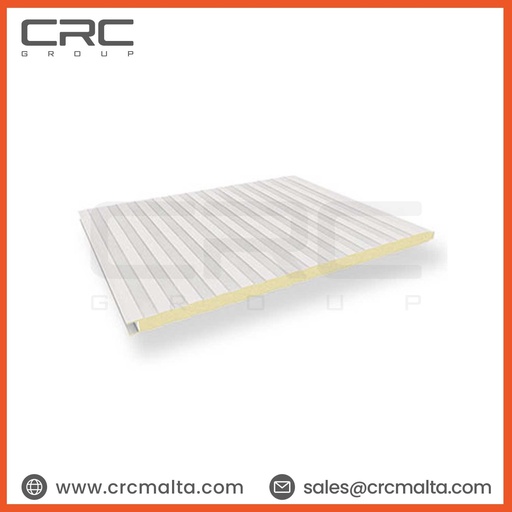

Self-supporting wall panel with polyurethane foam insulation.

AVAILABLE THICKNESSES FOR THE SELF-SUPPORTING WALL PANEL BOX
Working width: 1.000 mm
Thicknesses (mm): 30-35-40-50-60-80-100-120

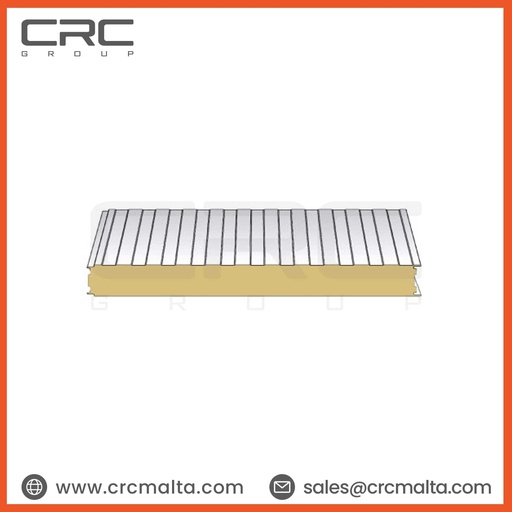

Frigo is a sandwich wall panel with a rigid polyurethane foam core, labyrinth joint, and visible fixing.

Self-supporting wall panel with polyurethane foam insulation.
Working width: 1.000 mm
Thicknesses (mm): 25-30-35-40-50-60-80-100-120-150

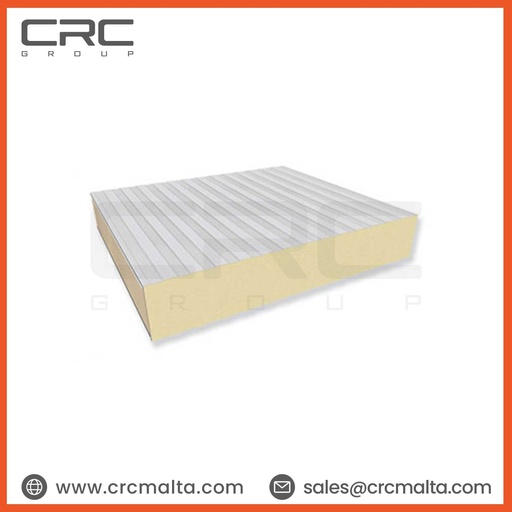

Self-supporting wall panel with polyurethane foam insulation, intended for low-temperature cold stores.

Features:
Profile: Dogato / Smooth
Useful width: 1,225 mm
Thicknesses (mm): 100-120-150-180-200-220-240

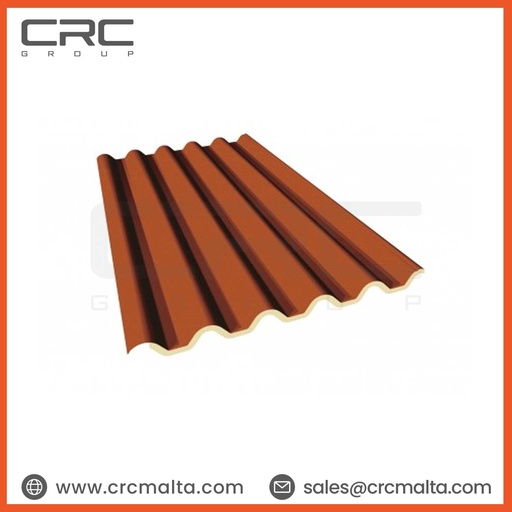

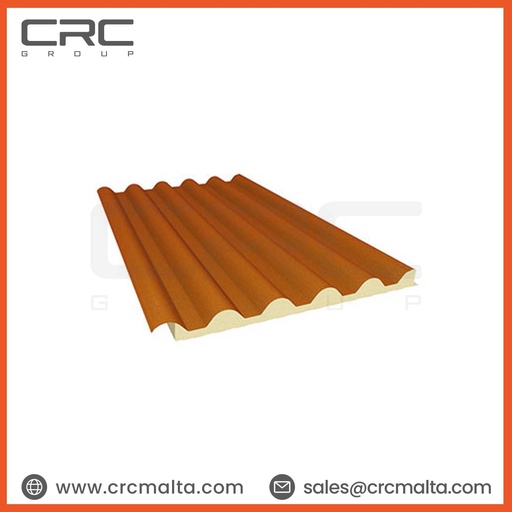

Self-supporting roof panel with polyurethane foam insulation, characterized by a waved profile which offers a particularly good way of substitution for old roofs in asbestos/cement.

6 waves, 50 mm wave height, 200 mm wave step
Working width: 1.000 mm
Thicknesses (mm): 20-35-50-85

Trapezoidal steel sheet Omega profile covered by 15 mm of bare PU.

Working width: 1.000 mm
Thickness (mm): 15 mm
External supports: steel, aluminum, copper
Internal: bare polyurethane

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity: Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity: Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: PVC Membrane, Painted Galvanized Sheet
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K
