Insulated Sandwich Panels & Accessories

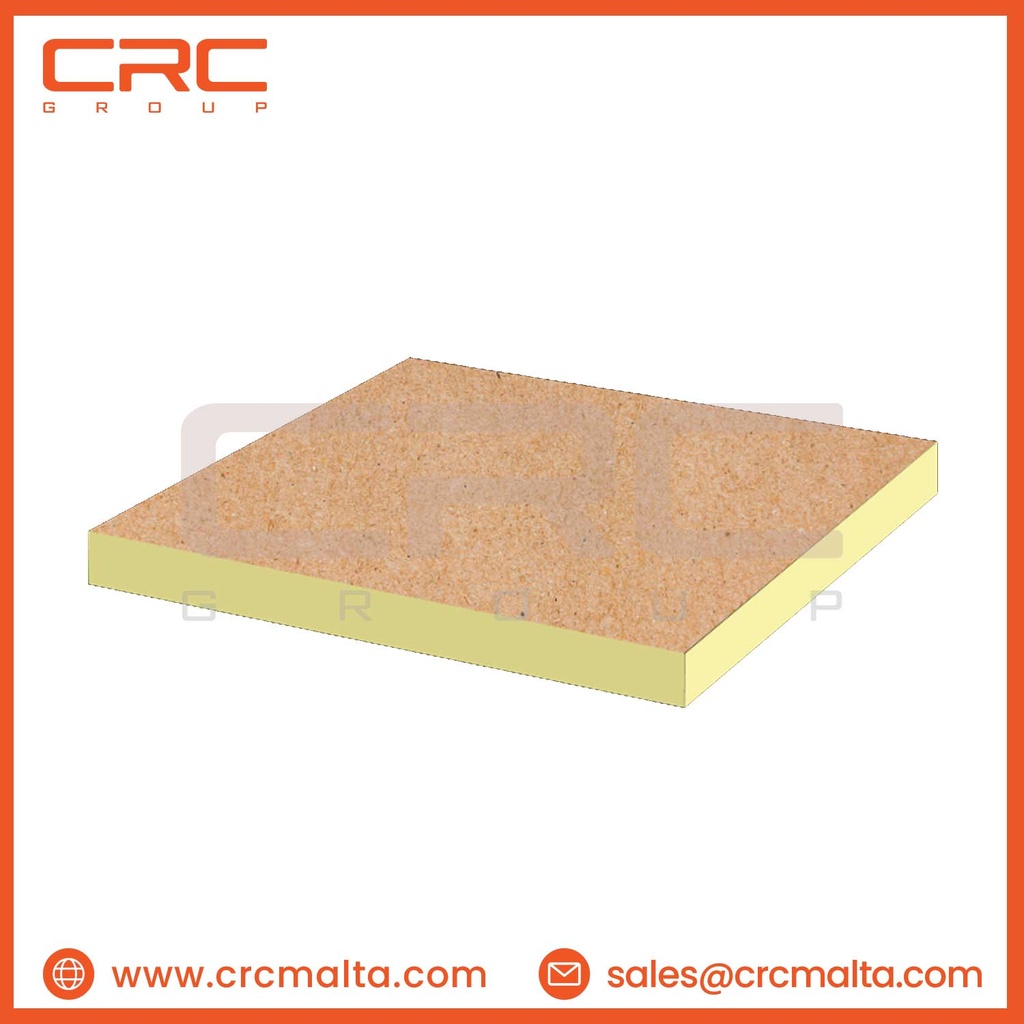

• Natural Kraft Paper on the upper and lower surfaces.
• Fire performance according to TS EN 13501-1, B for PUR and PIR insulation board.
• Production flexibility at width 1 m, and any ordered length between 1 m - 3 m.
• Thickness options 50-60-80-100 mm • Compressive strength is 0,095 MPa, according to TS EN 826.
• Usage in roof, wall and floor insulation applications that require high compressive strength.
• Density PUR 38 kg/m3 (+/-2), PIR 40 kg/m3 (+/-2).
• Production at Sakarya factory.

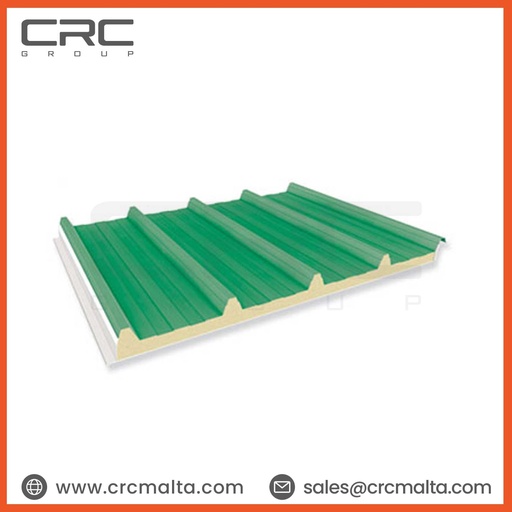

Self-supporting roof panel with polyurethane foam insulation, used for agricultural buildings roofs or for aggressive environments, with a 7 % minimum slope.

SELF-SUPPORTING AGRO PANEL ROOF PANEL THICKNESSES
5 ribs
Ribs height: 40mm
Ribs step: 250 mm
Working width: 1.000 mm
Thicknesses (mm): 30-40-50-60-80-100

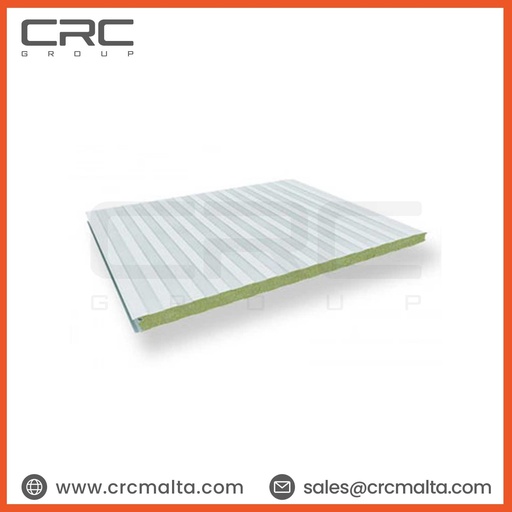

MEC W.A. is a self-supporting wall panel made of rock wool that provides sound insulation or sound absorption. It has a visible joint and internal micro locked support and it is used for wall or firewall with the need to have high performances about fire resistance, sound insulation and sound absorption.

Profile: Dogato/Special/Smooth
Internal support: micro locked smooth
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150-200

Self-supporting wall panel with rockwool insulation and visible joint used for wall or firewall where high fire reaction and fire resistance is needed.

Profile: Dogato/Special/Smooth
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150-200

Self-supporting roof panel with rock wool insulation intended for industrial, commercial and civil building roofs, with the need for high reaction and fire resistance performance.

5 Greek, Greek height 40 mm, Greek pitch 250 mm
Useful width: 1,000 mm
Thicknesses (mm): 50-60-80-100-120-150-200-240

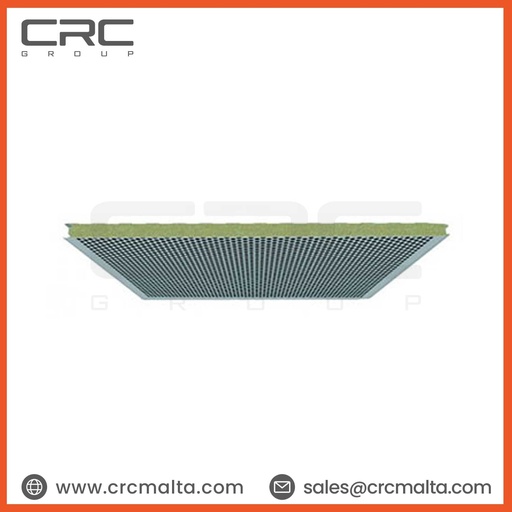

Self-supporting roof panel with rockwool insulation and internal micro locked support, used for industrial, commercial and civil buildings, with the need to have sound insulation and sound absorption characteristics. The panel has to be assembled with a 7 % minimum slope.

5 ribs , ribs’ height 40 mm, ribs’breath 250 mm.
Working width: 1.000 mm
Thicknesses (mm): 50 – 60 – 80 – 100 – 120 – 150 – 200
Internal support micro locked

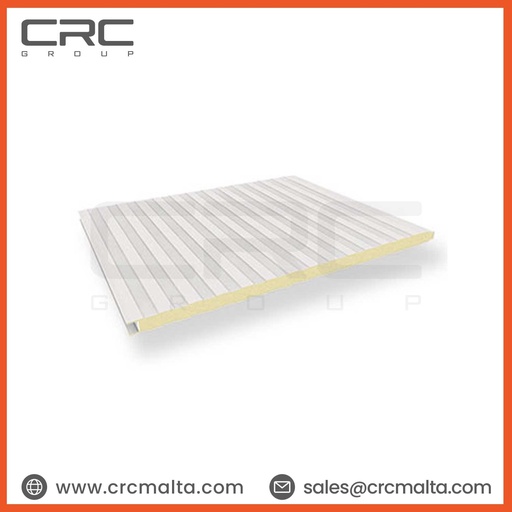

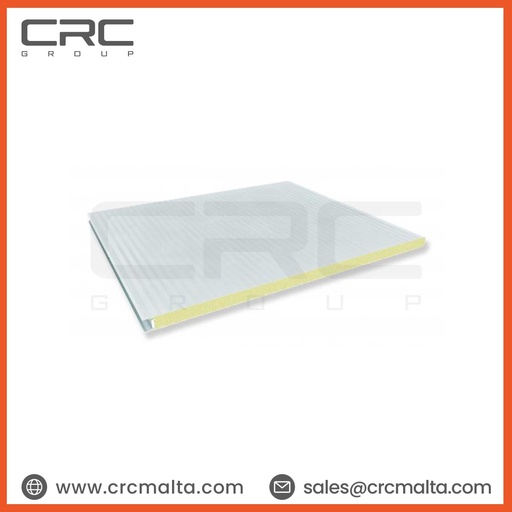

Self-supporting wall panel with polyurethane foam insulation.

AVAILABLE THICKNESSES FOR THE SELF-SUPPORTING WALL PANEL BOX
Working width: 1.000 mm
Thicknesses (mm): 30-35-40-50-60-80-100-120

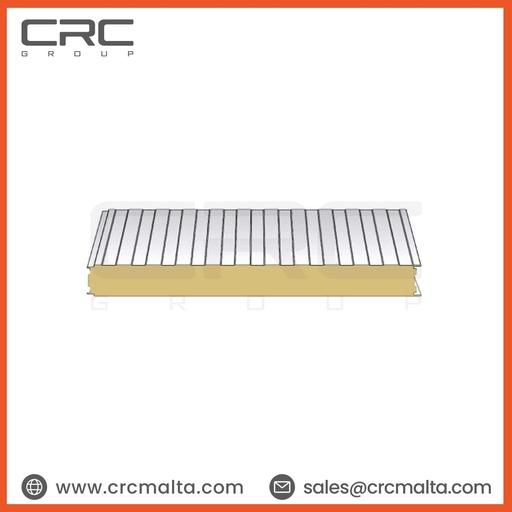

Frigo is a sandwich wall panel with a rigid polyurethane foam core, labyrinth joint, and visible fixing.

Self-supporting wall panel with polyurethane foam insulation.
Working width: 1.000 mm
Thicknesses (mm): 25-30-35-40-50-60-80-100-120-150

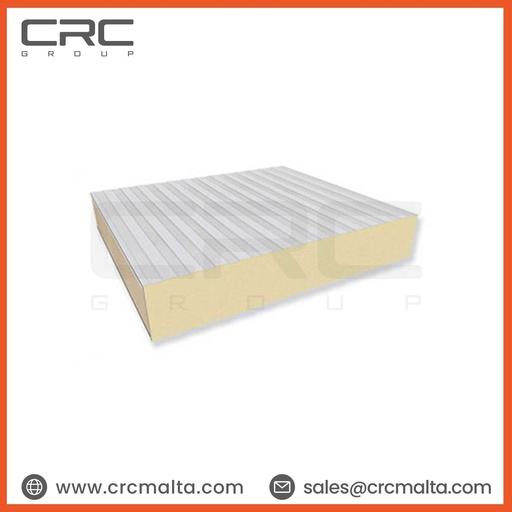

Self-supporting wall panel with polyurethane foam insulation, intended for low-temperature cold stores.

Features:
Profile: Dogato / Smooth
Useful width: 1,225 mm
Thicknesses (mm): 100-120-150-180-200-220-240

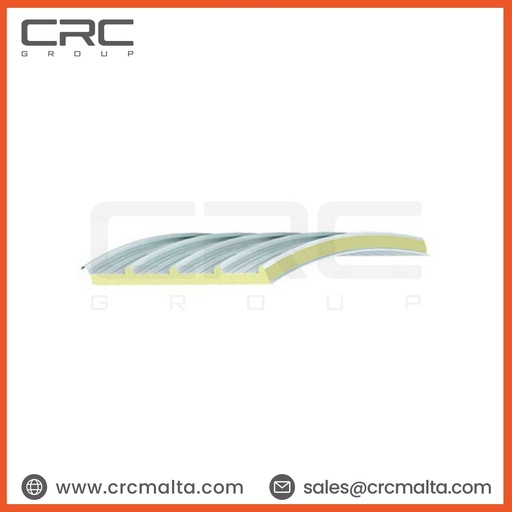

Self-supporting curved panel 6 meters radius with polyurethane foam insulation, used for roofing beams wing and “Y” prefabricated.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Radius: 6,00 m
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80-100

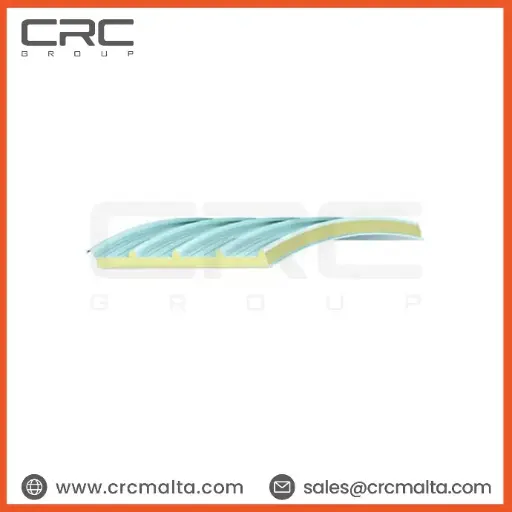

Self-supporting curved panel 6 meters radius with polyurethane foam insulation, used for roofing beams wing and “Y” prefabricated with internal support in fiber cement.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Internal support: fiber cement 4,00 mm
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80

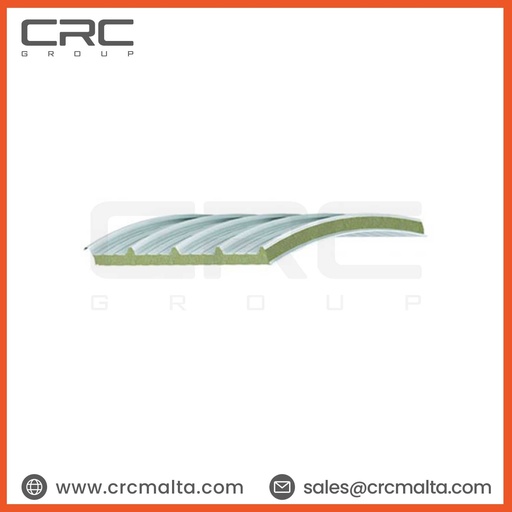

Self-supporting curved panel 6 meters radius with rockwool insulation, used for roofing beams wing and “Y” prefabricated.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Radius: 6,00 m
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100

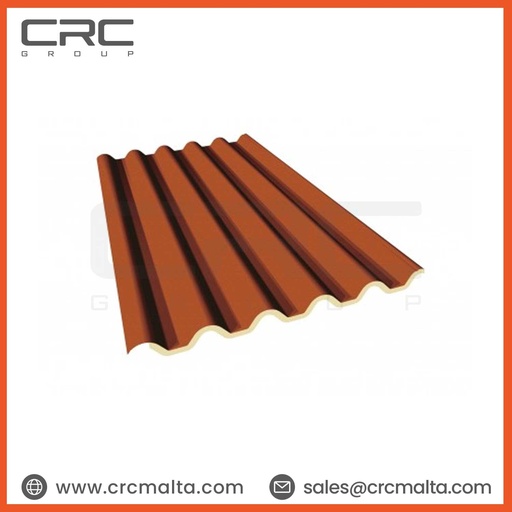

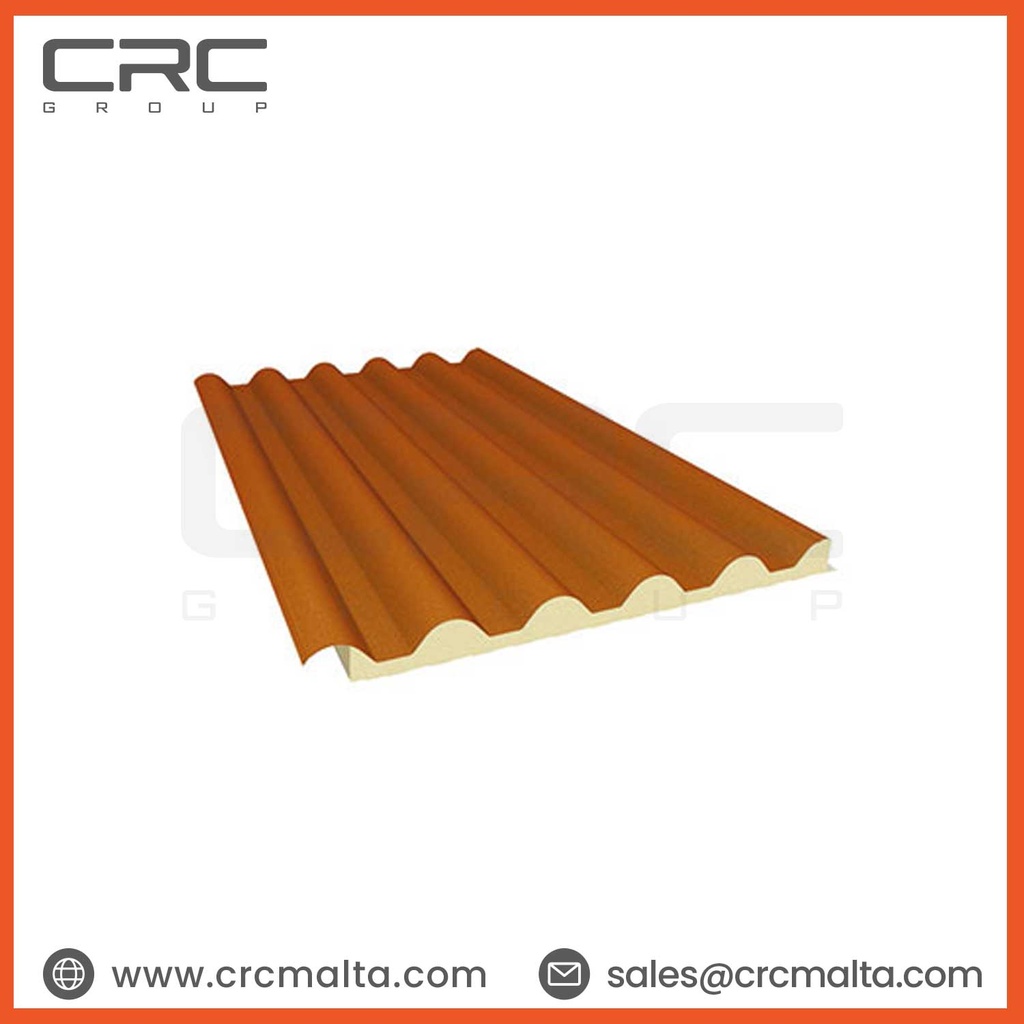

Self-supporting roof panel with polyurethane foam insulation, characterized by a waved profile which offers a particularly good way of substitution for old roofs in asbestos/cement.

6 waves, 50 mm wave height, 200 mm wave step
Working width: 1.000 mm
Thicknesses (mm): 20-35-50-85

Trapezoidal steel sheet Omega profile covered by 15 mm of bare PU.

Working width: 1.000 mm
Thickness (mm): 15 mm
External supports: steel, aluminum, copper
Internal: bare polyurethane

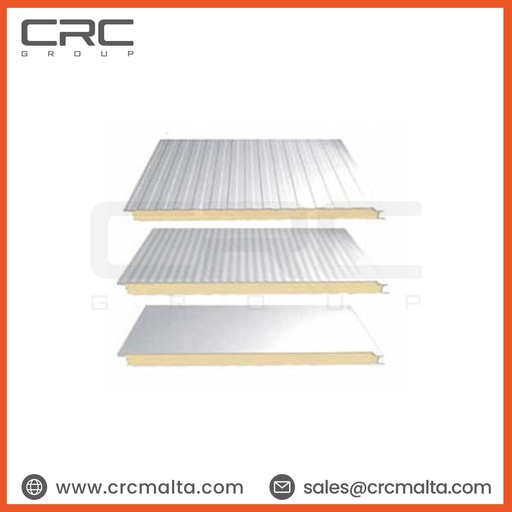

Self-supporting panel with polyurethane foam insulation.

External profile: Special/Dogato/Smooth
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80-100-120-150

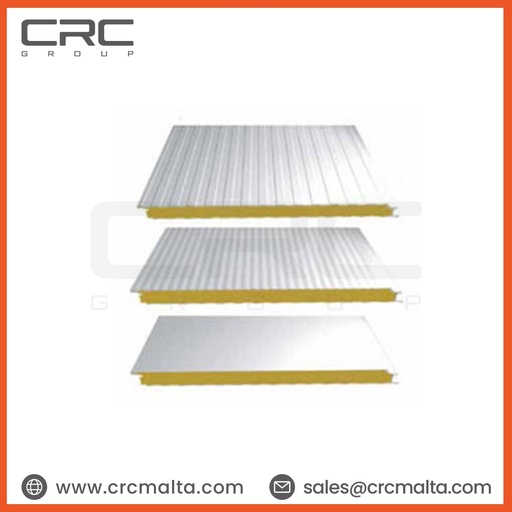

Self-supporting wall panel with rockwool insulation.

External profile: Special/Dogato/Smooth
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150

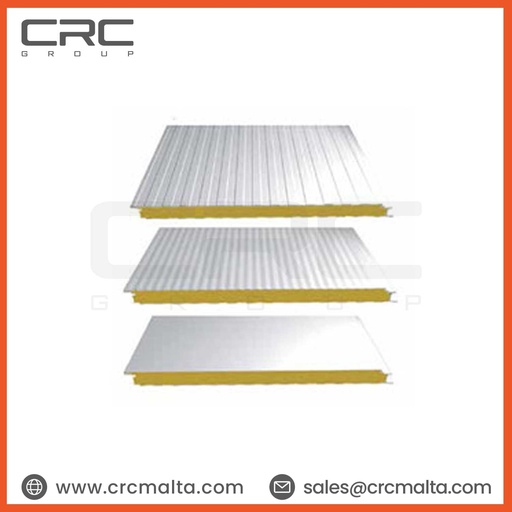

Self-supporting wall panel with Rockwool insulation.

External profile: Special/Dogato/Smooth
Internal profile: micro-locked smooth
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150

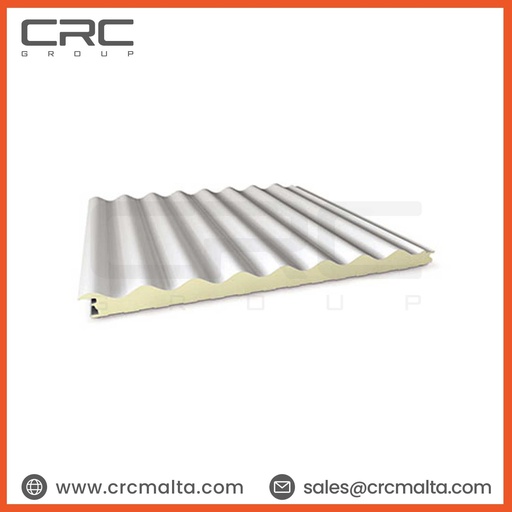

Self-supporting panel with polyurethane foam insulation.

8 waves, 24 mm wave height, 125 mm wave step
Working width: 1.000 mm
Thicknesses (mm): 66-86-106-126

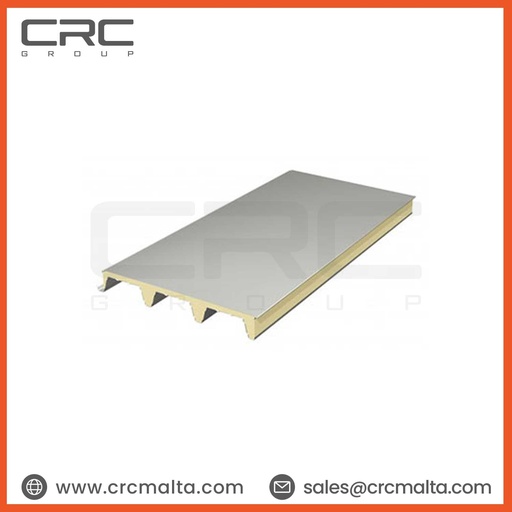

Self-supporting roof panel with polyurethane foam insulation, intended for flat or low-slope industrial and commercial roofs.

4 Greek, Greek height 106 mm, Greek pitch 333 mm
Doped outer side: support in slatted steel with glued synthetic membrane in pvc or polyolefin
Raw internal side: steel support
Useful width: 1,000 mm
Thicknesses (mm): 50-60-80-100-120-150

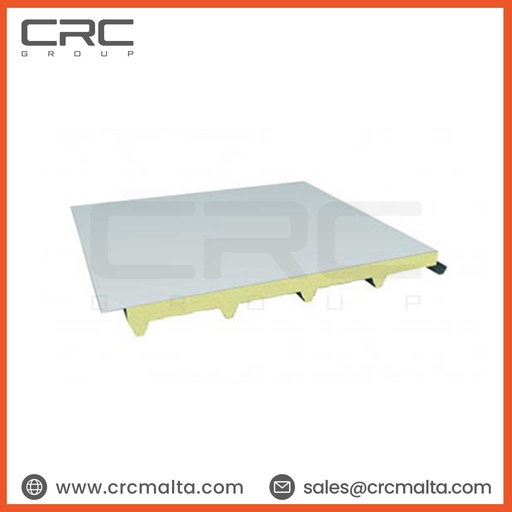

Self-supporting roof panel with polyurethane foam insulation, used for industrial and commercial flat or low slope roofs.

4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
External side: pvc or polyolefin syntethic membran
Ribbed internal side: steel support
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150

Self-supporting roof panel with polyurethane foam insulation, used for industrial and commercial flat or low slope roofs.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
External side: pvc or polyolefin syntethic membrane
Ribbed internal side: steel support
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80-100-120-150

Self-supporting roof panel with polyurethane foam insulation, used for industrial and commercial flat or low slope roofs.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Dogato external side:dogato steel support with glue a PVC or polyolefin syntethic membrane.
Ribbed internal side: steel support
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80-100-120-150-200-240

Self-supporting roof panel with rockwool insulation, used for industrial and commercial flat or low slope roofs.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Dogato external side: dogato steel support with glue a pvc or polyolefin synthetic membran
Ribbed internal side: steel support
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150-200

Self-supporting sandwich panel with polyurethane foam insulation.

Thicknesses (mm): 30-40-50-60-80-100-120
Woking width (mm): from 623 mm to 1.136 mm

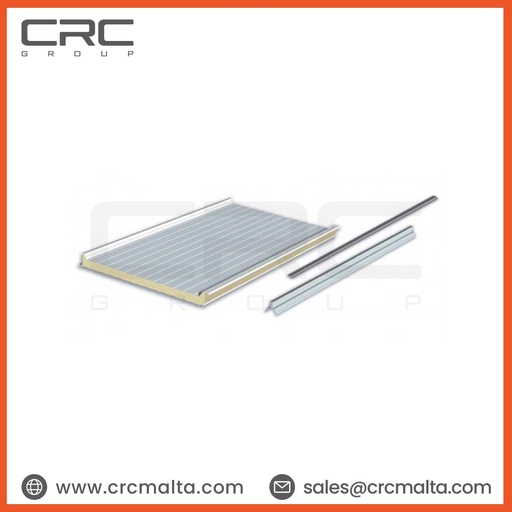

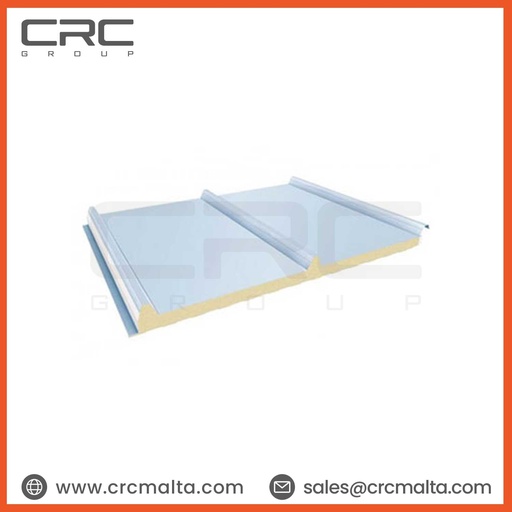

Self-supporting roof sandwich panel with polyurethane foam insulation, predisposal to bonding of amorphous photovoltaic modules; The external support between the ribs is totally flat to allow the correct bonding of modules.

3 ribs, 40 mm ribs height, 500 mm ribs step
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80-100

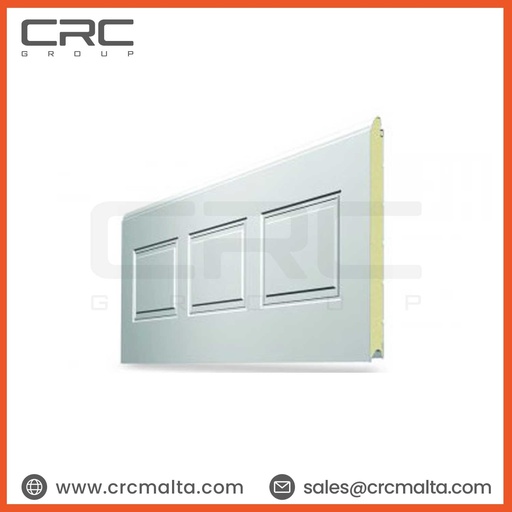

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Cassetted
Internal support profile: Ribbed
Thickness (mm): 40

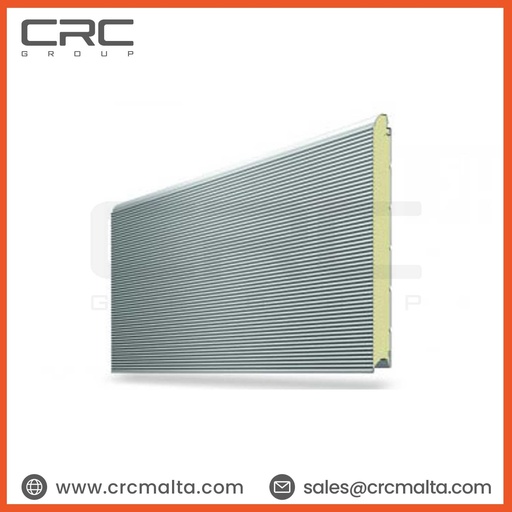

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Microribbed
Internal support profile: Ribbed
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Narrow Rib
Internal support profile: Ribbed
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Not profiled
Internal support profile: Ribbed
Thickness (mm): 40

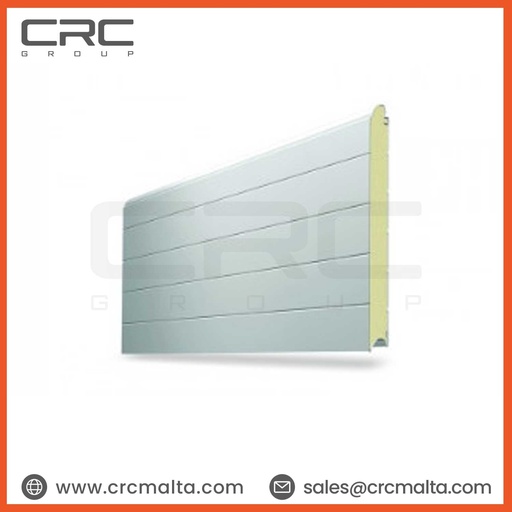

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Ribbed
Internal support profile: Ribbed
Thickness (mm): 40

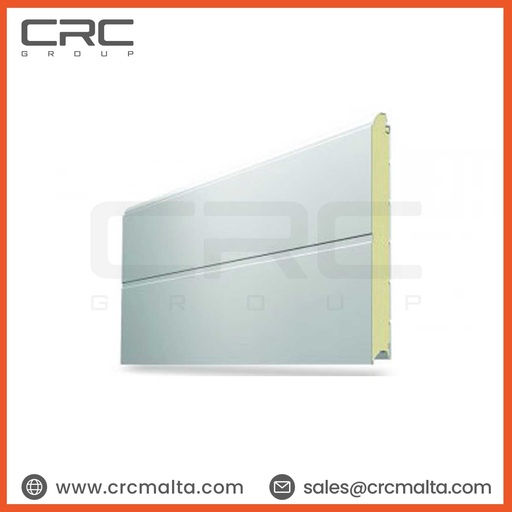

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Wide Rib
Internal support profile: Ribbed
Thickness (mm): 40

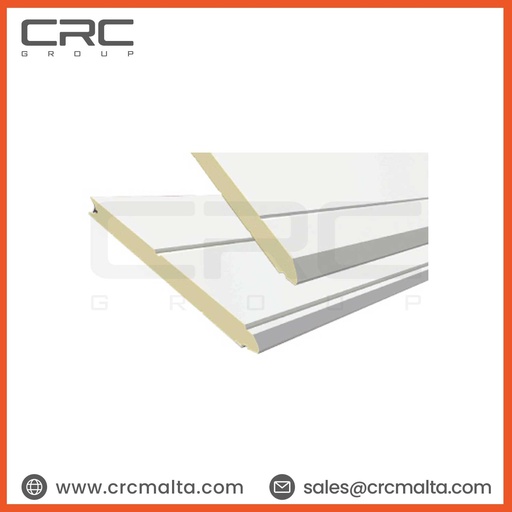

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: multi-groove, central groove, asymmetrical groove, flat non-profiled, Cassettes, ribbed, central V, asymmetrical V, micro-profiled
Internal support profile: Ribbed.
Thickness (mm): 40
