Self-supporting roof sandwich panel with polyurethane foam insulation, predisposal to bonding of amorphous photovoltaic modules; The external support between the ribs is totally flat to allow the correct bonding of modules.

3 ribs, 40 mm ribs height, 500 mm ribs step
Working width: 1.000 mm
Thicknesses (mm): 40-50-60-80-100

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Cassetted
Internal support profile: Ribbed
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Microribbed
Internal support profile: Ribbed
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Narrow Rib
Internal support profile: Ribbed
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Not profiled
Internal support profile: Ribbed
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Ribbed
Internal support profile: Ribbed
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Wide Rib
Internal support profile: Ribbed
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: multi-groove, central groove, asymmetrical groove, flat non-profiled, Cassettes, ribbed, central V, asymmetrical V, micro-profiled
Internal support profile: Ribbed.
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Ribbed
Internal support profile: Ribbed.
Thickness (mm): 40

Sandwich panel with polyurethane foam insulation used for civil sectional door panels.

External support profile: Ribbed
Internal support profile: Ribbed.
Thicknesses (mm): 40 – 80

Self-supporting roof panel with polyurethane foam insulation, used for industrial and commercial buildings roofs.

4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
Working width: 1.000 mm
Thicknesses (mm): 50-80-100-120-150

Self-supporting single sheet panel with polyurethane foam insulation used for low slope roofs.

4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
Working width: 1.000 mm
Thicknesses (mm): 50-80-100-120-150

Self-supporting single-sheet roof panel with polyurethane foam insulation is used for industrial and commercial building roofs.

Thicknesses (mm): 50 – 80 – 100 – 120 – 150
Ribs’ height: 106 mm.
Ribs’ breath: 333 mm.
Working width: 1.000 mm.

Self-supporting roof single sheet panel with polyurethane foam insulation used for low slope roofs.

5 ribs, ribs’ height 40 mm, ribs’ breath 250 mm
Working width: 1.000 mm
Thicknesses(mm): 20-30-40-50-60-80-100

Self-supporting roof single sheet panel with polyurethane foam insulation, used for industrial roofs, with minimun 7 % slope.

5 ribs , ribs’ height 40 mm, ribs’breath 250 mm.
Working width: 1.000 mm
Thicknesses (mm) : 20 – 30 – 40 – 50 – 60 – 80 – 100

Self-supporting roof panel with polyurethane foam insulation, used for industrial, commercial and civil buildings roofs, with a 7 % minimun slope.

Thicknesses (mm) : 30 – 40 – 50 – 60 – 80 – 100 -120 150
Ribs’ height : 40 mm.
Ribs’ breath: 250 mm.
Working width : 1.000 mm.

Self-supporting roofing panel with polyurethane foam insulation, intended for roofs of civil and agricultural buildings with a minimum slope of 13%.

Useful width: 1,000 mm
Medium thicknesses (mm): 53-68-105

Italcoppo profile corrugated sheet covered with 1.5 cm of bare polyurethane.

Useful width: 1,000 mm
Thickness (mm): 15 mm
External supports: prepainted steel, prepainted aluminum, copper
Interior: naked polyurethane
Version 1: 70/110 – ridge side/eaves side
Version 2: 175/175 – ridge side/eaves side

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity: Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity: Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: PVC Membrane, Painted Galvanized Sheet
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet And Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

Outer Face - Inner Face: Painted Galvanised Sheet - Painted Galvanised Sheet and Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K

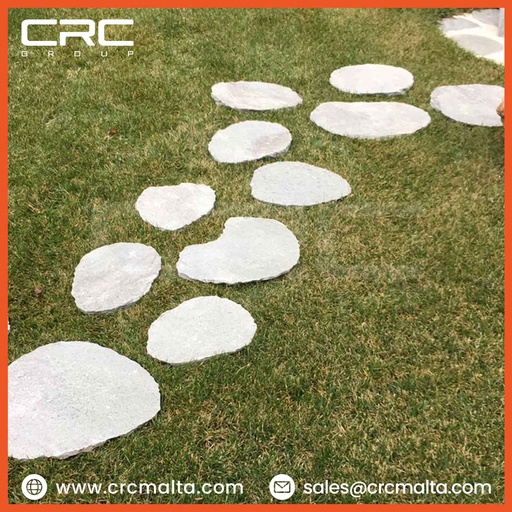

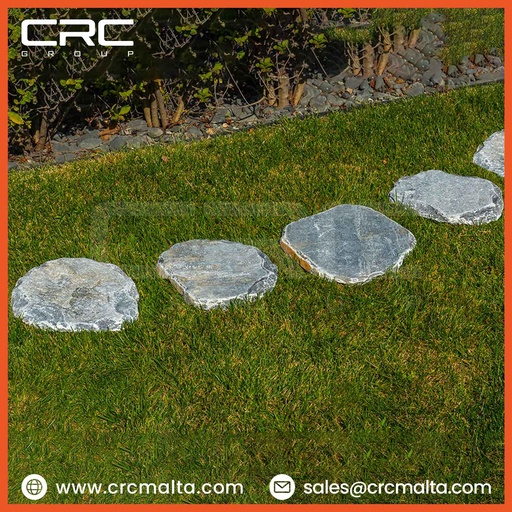

Product: Slate
Surface: antique
Color: blue, grey and respective shades
Shape: irregular oval with a thickness of about 3-5cm
Dimensions:
A) Normal size approximately 30x30cm
B) XXL size approximately 40x40cm

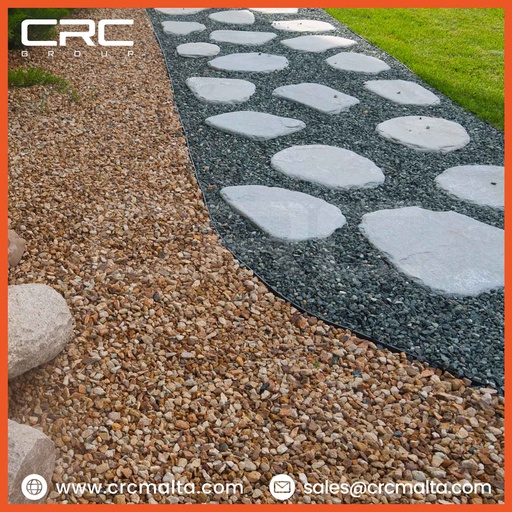

Product: Kavalas Slate
Surface: antique
Color: grey and respective shades
Shape: irregular oval with a thickness of about 3-4cm
Dimensions:
A) Normal size approximately 30x30cm
B) XXL size approximately 40x40cm

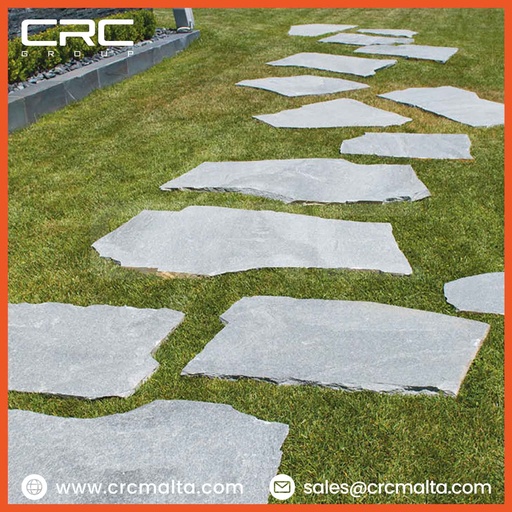

Product: Kavalas Slate
Surface: natural
Color: grey and respective shades
Shape: irregular oval with a thickness of about 3-5cm
Dimensions: approximately 45x35cm, 50x40cm, 60x70cm

Product: Kavalas Slate
Surface: natural - circumferential chisel
Color: grey and respective shades
Shape: irregular oval with a thickness of about 3-4cm
Dimensions:
A) Normal size approximately 30x30cm
B) XXL size approximately 40x40cm

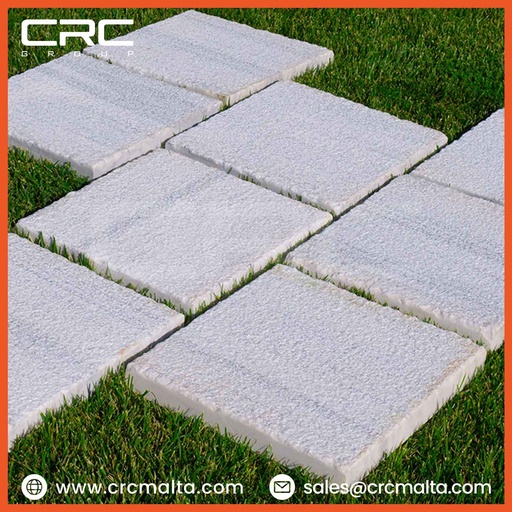

Product: Kavalas Marble
Surface: bush hammered
Color: white with blue grey lines
Dimensions: 40x40cm
Thickness: ±4,5cm

Twix is the collection of Ultrashield composite wood cladding modules by crc for walls and false ceilings, designed to create seamless surfaces and capable of combining beauty, functionality, and performance.

25 x 197 x 3000 mm

Twix is the collection of Ultrashield composite wood cladding modules by crc for walls and false ceilings, designed to create seamless surfaces and capable of combining beauty, functionality, and performance.

25 x 197 x 3000 mm

Twix is the collection of Ultrashield composite wood cladding modules by crc for walls and false ceilings, designed to create seamless surfaces and capable of combining beauty, functionality, and performance.

25 x 197 x 3000 mm

Twix is the collection of Ultrashield composite wood cladding modules by crc for walls and false ceilings, designed to create seamless surfaces and capable of combining beauty, functionality, and performance.

25 x 197 x 3000 mm

Twix is the collection of Ultrashield composite wood cladding modules by crc for walls and false ceilings, designed to create seamless surfaces and capable of combining beauty, functionality, and performance.

25 x 197 x 3000 mm

Twix is the collection of Ultrashield composite wood cladding modules by crc for walls and false ceilings, designed to create seamless surfaces and capable of combining beauty, functionality, and performance.

25 x 197 x 3000 mm

Twix is the collection of Ultrashield composite wood cladding modules by crc for walls and false ceilings, designed to create seamless surfaces and capable of combining beauty, functionality, and performance.

25 x 197 x 3000 mm

Twix is the collection of Ultrashield composite wood cladding modules by crc for walls and false ceilings, designed to create seamless surfaces and capable of combining beauty, functionality, and performance.

Diamention: 25 x 197 x 3000 mm
