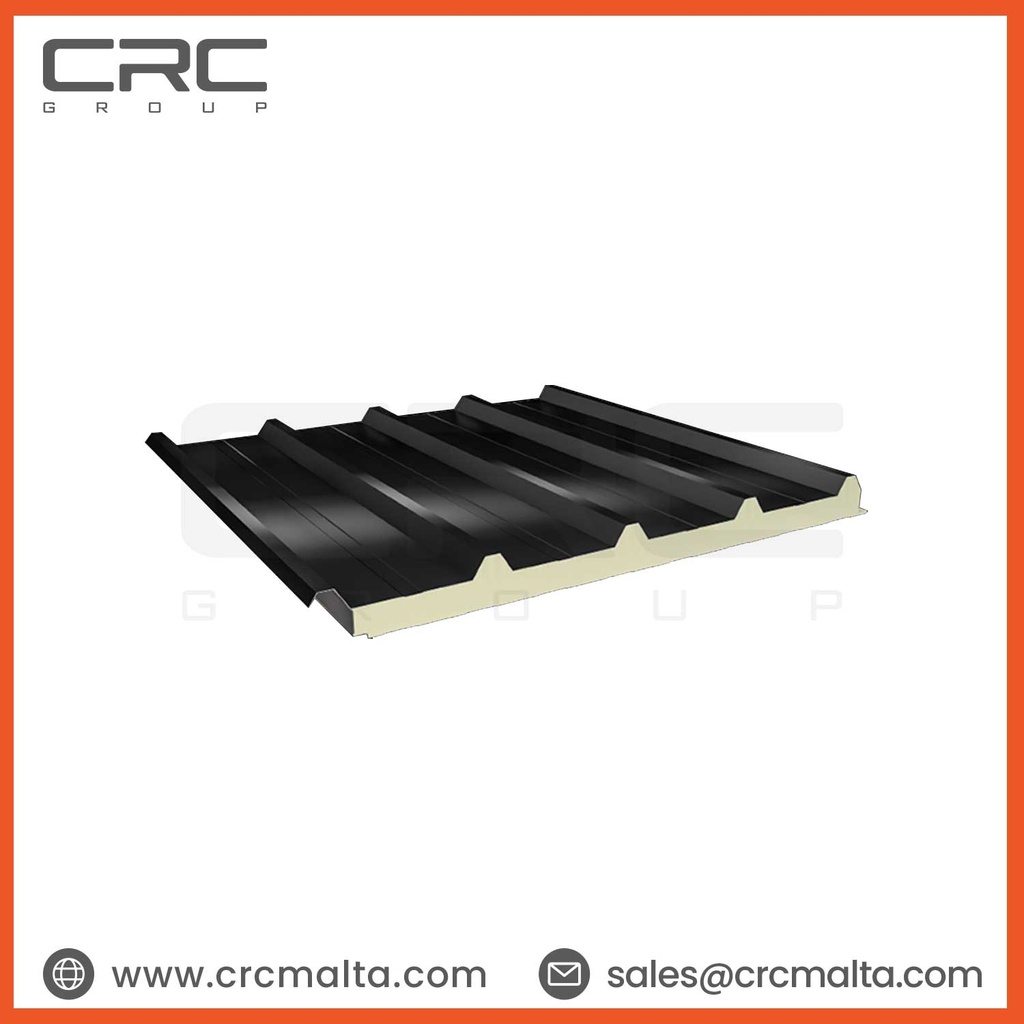

CRC Insulated 5 Ribs Roof Panel
5 ribs profiled outer sheet.
I prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%
Fire performance according to TS EN 13501-1B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m & 15m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
EPS insulation alternatives besides PUR and PIR insulation.
ISO, TSE, and CE quality certificates.
