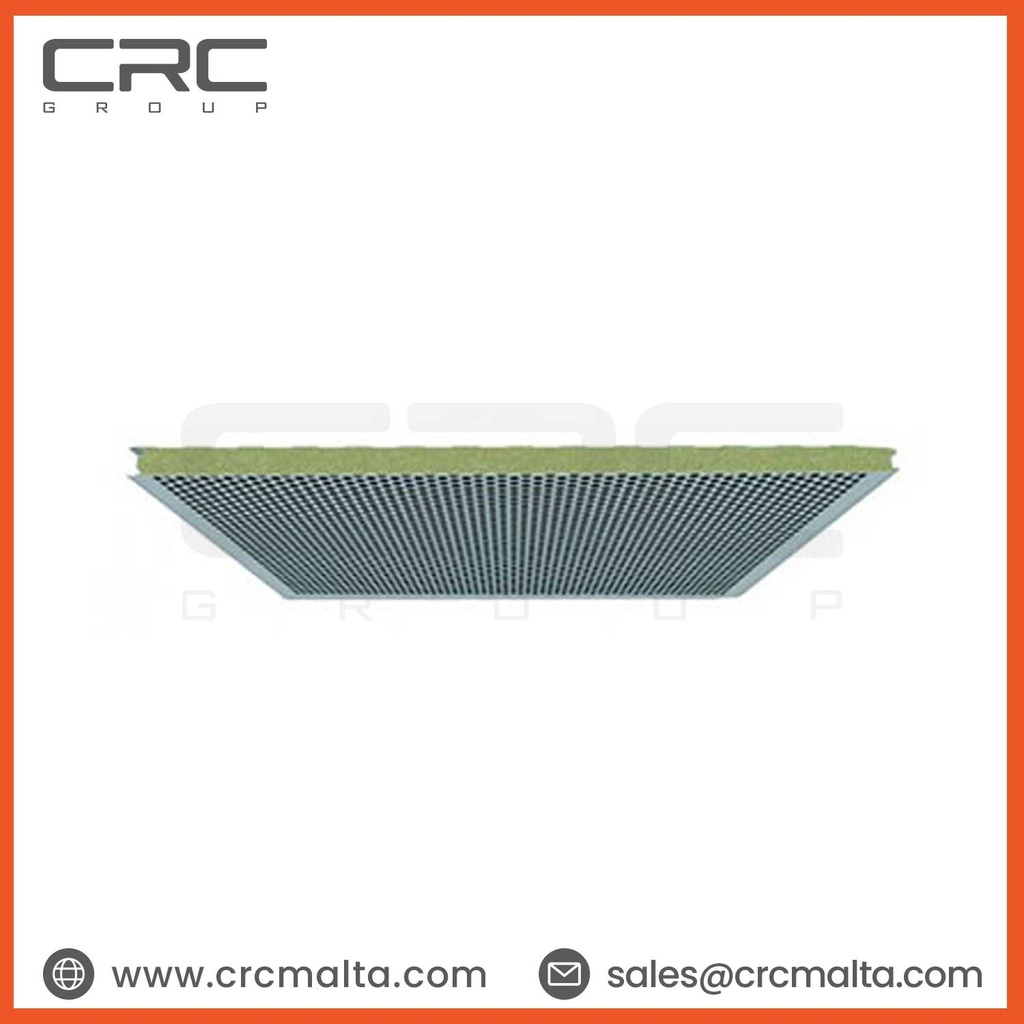

CRC Rockwool Roof Panels PENTA W.A
Self-supporting roof panel with rockwool insulation and internal micro locked support, used for industrial, commercial and civil buildings, with the need to have sound insulation and sound absorption characteristics. The panel has to be assembled with a 7 % minimum slope.
5 ribs , ribs’ height 40 mm, ribs’breath 250 mm.
Working width: 1.000 mm
Thicknesses (mm): 50 – 60 – 80 – 100 – 120 – 150 – 200
Internal support micro locked
Self-supporting PENTA W.A. roof panel with rockwool insulation and internal micro locked support, used for industrial, commercial and civil buildings, with the need to have sound insulation and sound absorption characteristics. The panel has to be assembled with a 7 % minimum slope.
Fire resistance according to UNI EN 13501-2 (*):
Th. 50 mm – E.I. 30 – Assembled as vertical wall;
Th. 80 mm – E.I. 60 – Assembled as vertical wall;
Th. 100 mm – E.I. 120 – Assembled as vertical wall;
Th. 100 mm – E.I. 120 – Assembled as horizontal wall;
Fire reaction according to UNI EN 13501-1:
A2-S1-d0
