CRC Room-in-Room System Kubus

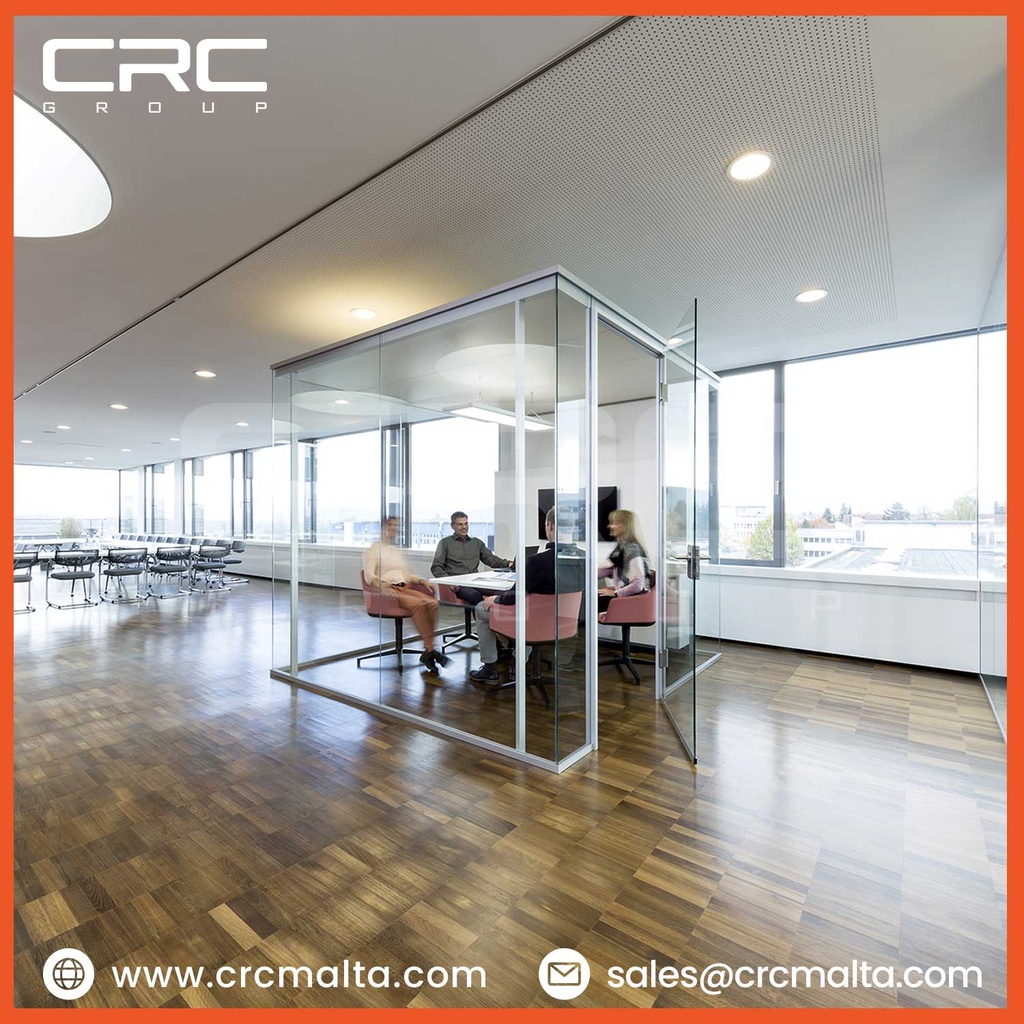

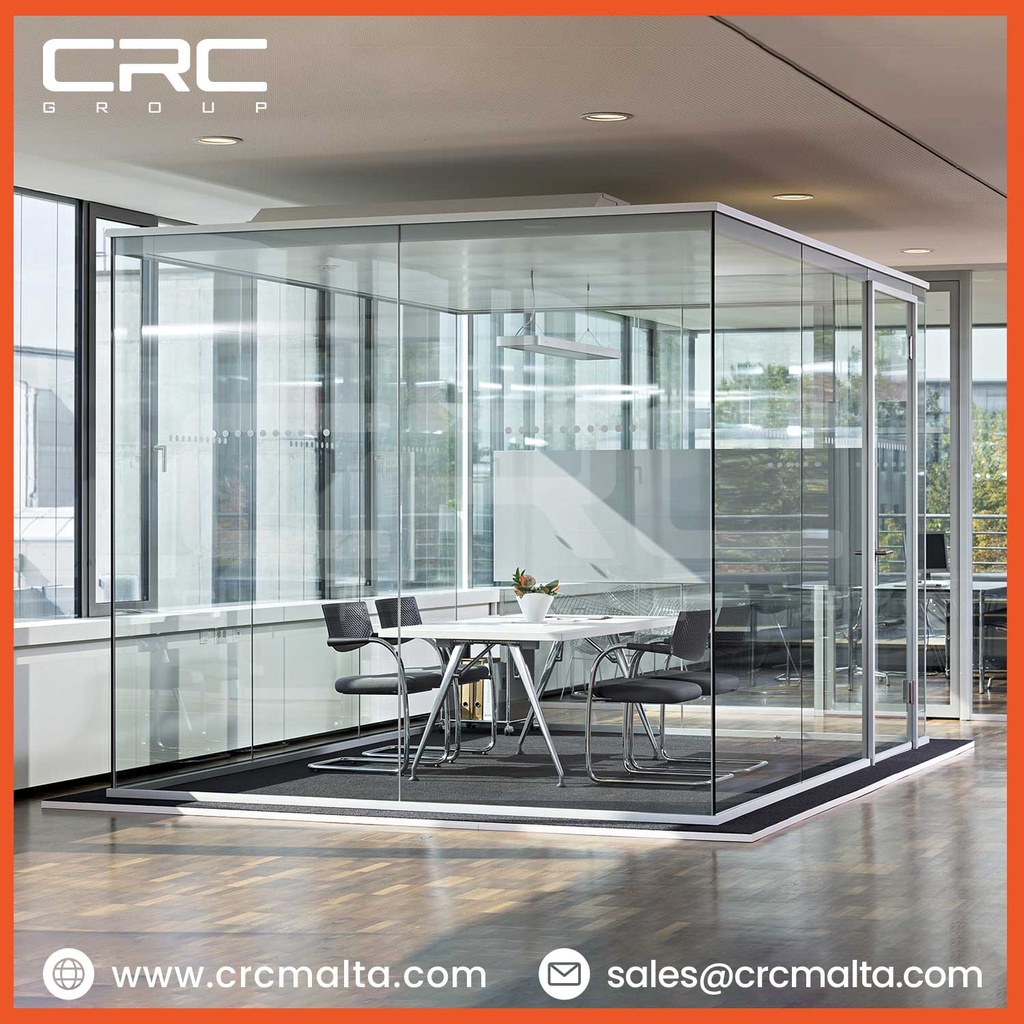

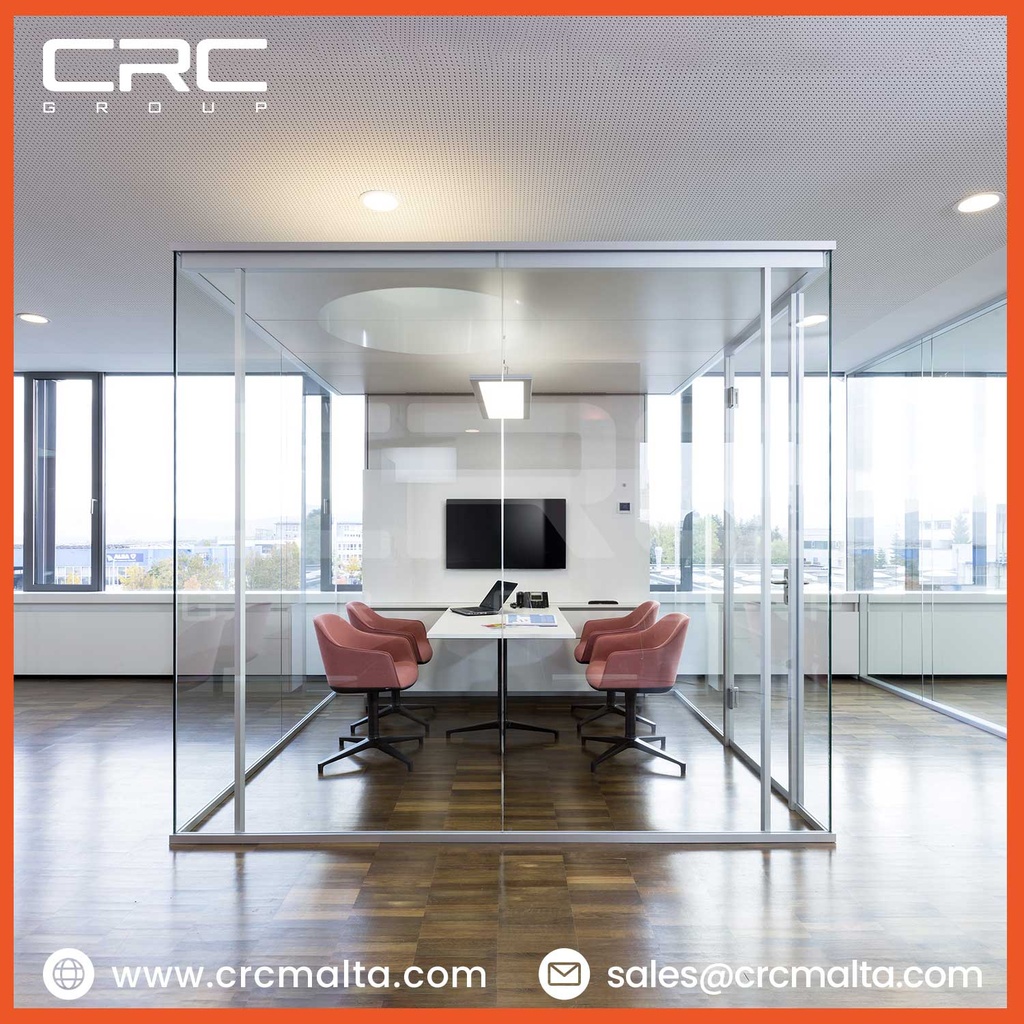

Room-in-Room System is a single glazed room in room solutions for modern office concepts. The system enrich modern, open office concepts with high-grade retreat areas. As it can be freely positioned in rooms and enables efficient use of space. The cube can be flexibly configured, is highly soundproofed and has extremely functional equipment. The all-glass cube provides confidentiality in large open-plan offices without impairing their transparency and their open character. The elegant aluminium structure of Kubus I with its all-glass, externally-flush design fits smoothly into the existing architecture.


Design: Fully glazed cube with aluminium supporting structure and single glazing
Dimensions:
Lenghts: 2.706 / 3.956 / 5.206 mm
Width: 2.774 mm
Height: 2.500 mm
Glazing: 10 mm toughened glass / 16 mm laminated glass
Sound insulation: 10 mm
toughened glass: Dn,T,w = 28 dB (equivalent to R’w of approx. 34 dB) 16 mm
laminated glass: Dn,T,w = 32 dB (equivalent to R’w of approx. 39 dB)
Stability: Internal, statically approved support design
Multifunctional wall: Integrated absorber element and panel for securing screens
Ventilation: Integrated combined ventilation and air extraction device, output of up to 210 m3/h
